EZW11XY-8000T-3000 Heavy Plate Rolling Machine in Nuclear Power Manufacturing
Cases
The company has A class industrial boiler manufacturing qualification, BRI class pressure vessel design and manufacturing qualification, 1000 Mwe nuclear power plant nuclear pressure equipment, nuclear chemical equipment manufacturing qualification, QTZ800 tower crane manufacturing qualification. Is specialized in industrial boiler, pressure vessel, nuclear equipment, lifting transportation equipment, wind power tower tube manufacturing professional company. The company has a strong product development and design ability, product design has been widely adopted computer-aided design (CAD) technology.

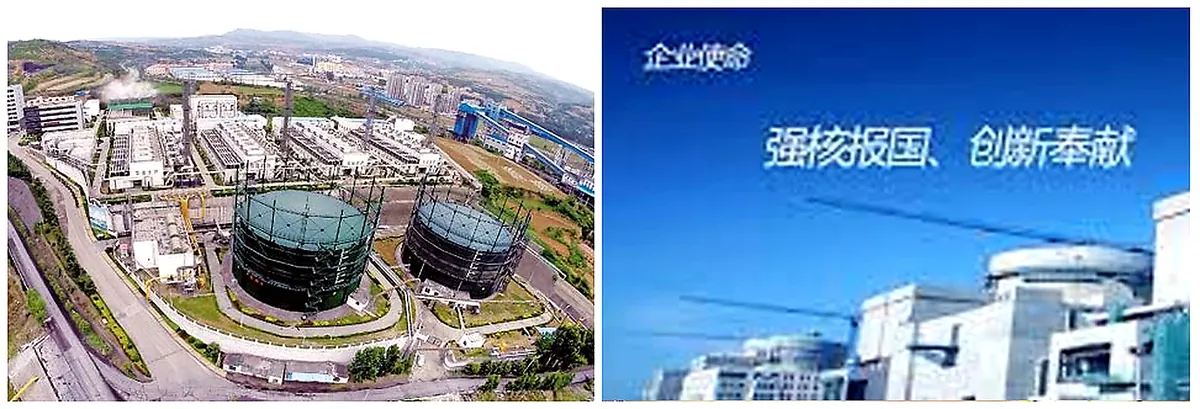

China National Nuclear Power Equipment Co., LTD
Introduction: The company has A class industrial boiler manufacturing qualification, BRI class pressure vessel design and manufacturing qualification, 1000 Mwe nuclear power plant nuclear pressure equipment, nuclear chemical equipment manufacturing qualification, QTZ800 tower crane manufacturing qualification. Is specialized in industrial boiler, pressure vessel, nuclear equipment, lifting transportation equipment, wind power tower tube manufacturing professional company. The company has a strong product development and design ability, product design has been widely adopted computer-aided design (CAD) technology. Strictly and conscientiously implement the "quality first, reputation first" policy, the establishment of a perfect quality assurance system, in 1999, obtained the ISO9001 quality system certification certificate. The enterprise technology center was recognized as the "provincial technology center" by the Gansu Provincial government in 2003.
Order EZHONG products:

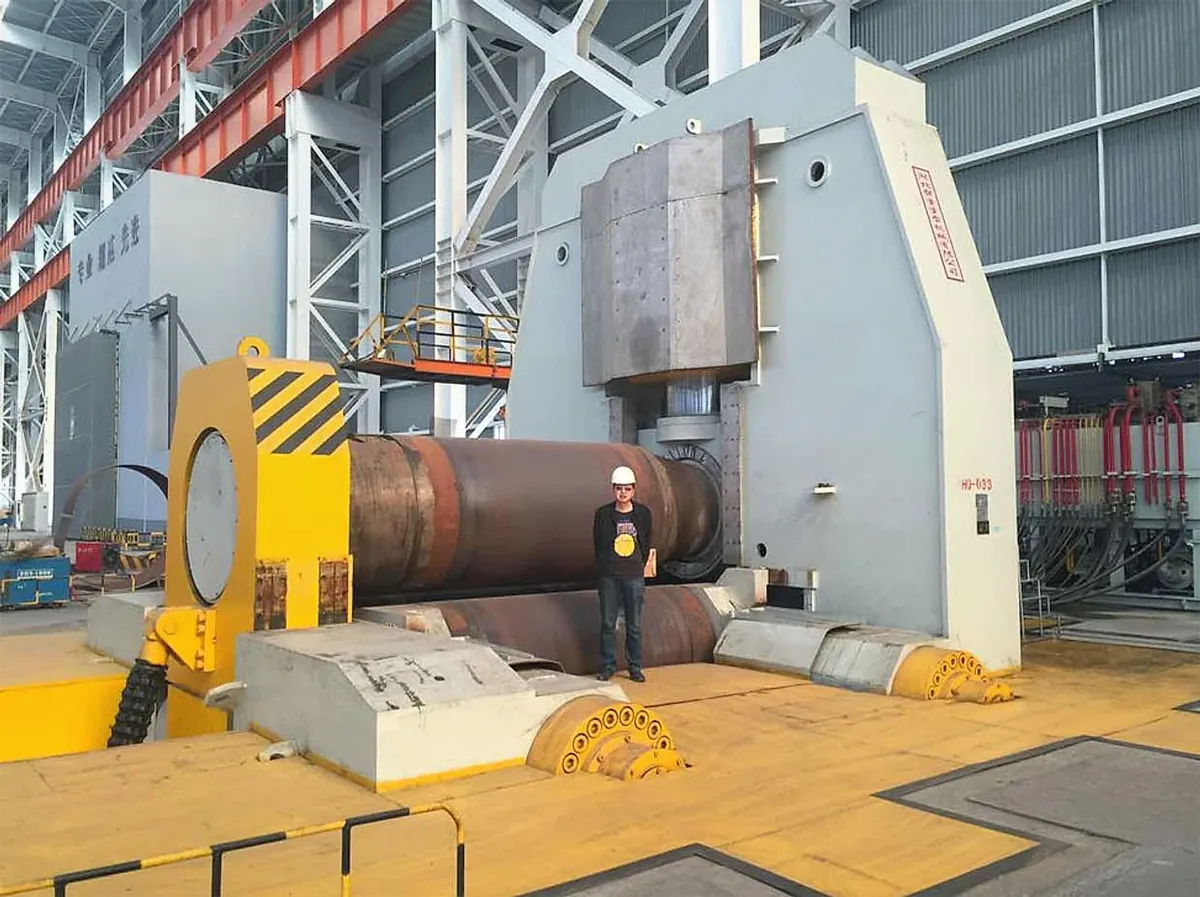

EZW11XY-8000T*3000 heavy plate rolling machine
EZ（W11XY-8000T * 3000 Heavy plate rolling machine)
Main parameter table
specification | |||
no. | Item | Unit | DATA |
1 | specifications | mm | XWIIS-200/360 |
2 | Equipment rated down capacity | Tons | 6000 |
3 | Maximum coil width | mm | 3000 |
4 | The upper roller diameter | mm | 1460 |
5 | Lower roller diameter | mm | 1225 |
6 | The lower roller center distance is adjustable range | mm | 1300-2450 |
7 | Minimum drum diameter at full load | mm | 3000 |
8 | Plate coil temperature | C | -20 |
9 | Plate yield limit | MPa | 450 |
10 | The maximum thickness of the plate | mm | 200 |
11 | The maximum thickness of overseas Chinese circle | mm | 160 |
12 | Prebend the remaining straight edge | 2-2.5(Plate thickness） | |
13 | The upper roller drives torque | KN.m | 4250（0.610rpm)） |
14 | Lower roller drives torque | KN.m | 152(0.728rpm) |
15 | Horizontal movement speed | Mm/min | --300 |
16 | The upper roller presses down the speed | Mm/min | carrying idler -200 |
17 | Up roll up speed | Mm/min | -200 |
18 | The coil speed | Mm/min | -2800 |
19 | Maximum working pressure of the hydraulic system Main cylinder diameter | MPa | 25 |
20 | Main cylinder diameter | mm | θ1260 |
21 | Total installed power | KW | ```550 |
