Cases
EZW11S-270-3500 Heavy Plate Rolling Machine in Pressure Vessels
Cases

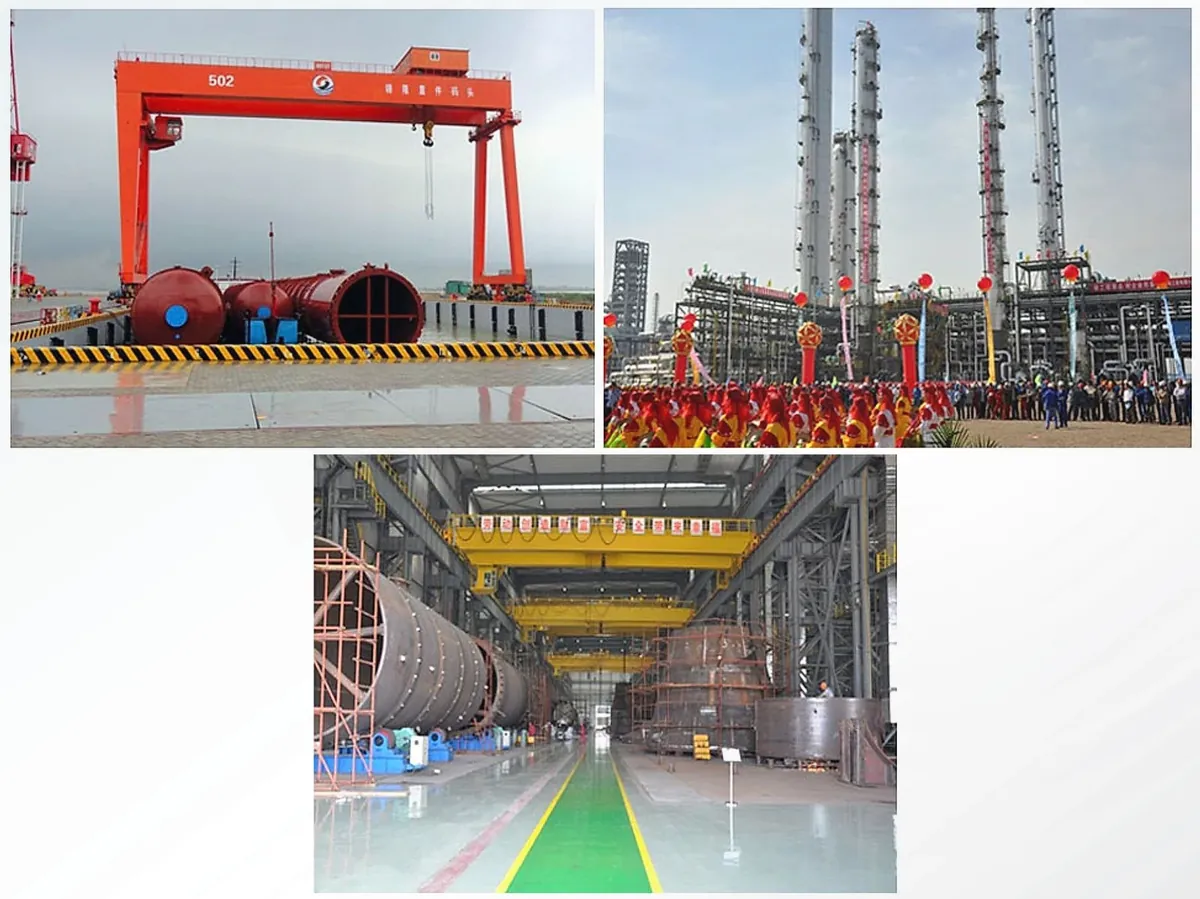

Zhangjiagang Chemical Machinery Co., Ltd (https://www.zhanghuaji.com) brief introduction: Zhangjiagang Chemical Machinery Co., Ltd. ( "ZCM")was established in 1998 and changed into a joint stock company in July 2009. The company is specialized in the design and manufacturing of petrochemical industry, coal chemical industry, fine chemical industry, metallurgy, medicine, photovoltaic energy, nuclear power, Marine equipment and military industry.
Zhangjiagang Chemical Machinery Co., Ltd
https://www.zhanghuaji.com
brief introduction: Zhangjiagang Chemical Machinery Co., Ltd. ( "ZCM")was established in 1998 and changed into a joint stock company in July 2009. The company is specialized in the design and manufacturing of petrochemical industry, coal chemical industry, fine chemical industry, metallurgy, medicine, photovoltaic energy, nuclear power, Marine equipment and military industry.

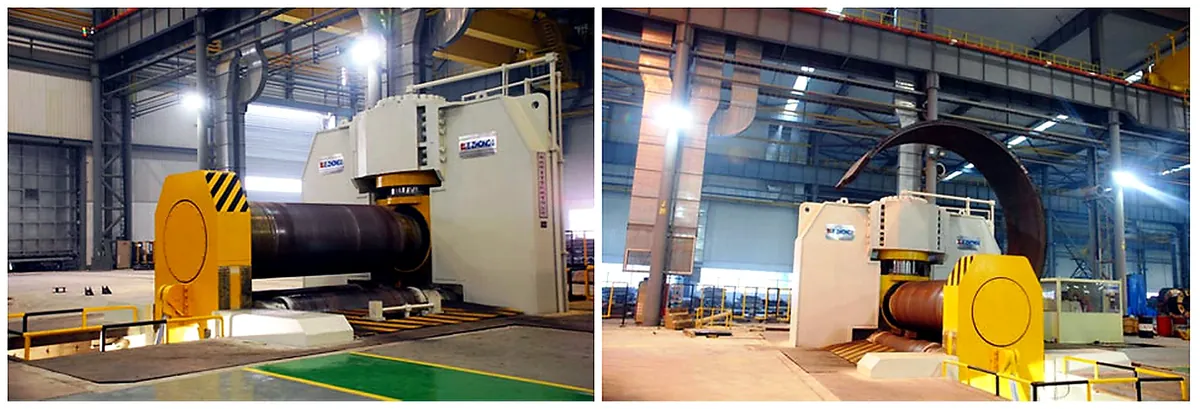

EZHONG product application :
EZW11S-270*3500 heavy plate rolling machine
（EZW11S-270*3500heavy plate rolling machine)
Main Parameter Table
No. | Item | Unit | Data |
1 | Machine Specifications | mm | Xw11s-270/360*3500 |
2 | Maximum Symmetrical Coil Thickness | mm | 270 cold rolling |
3 | Maximum pre-bending thickness | mm | 240 cold rolling |
4 | steel plate yield limit | MPa | 235 |
5 | Minimum workpiece diameter at maximum specification | mm | Φ4500 |
6 | Maximum width of coil | mm | 3500 |
7 | pre-bent remaining straight edge | mm | ≤2.5 times the plate thickness |
8 | Upper roll diameter | mm | 1460 |
9 | Bottom roll diameter | mm | 850 |
10 | Rows of rollers | row | 1 |
11 | Lower roller center distance | mm | 1700 |
12 | Bending speed | m/min | ~3.25 |
13 | The maximum stroke of the horizontal movement of the lower roller | mm | ±350 |
14 | Equipment rated pressing force | Tons | 6000 |
15 | Head overturning angle | ℃ | 90℃ |
16 | Machine dimensions (length, width and height) | mm | 11490×7075×8525 |
Related Cases
Additional published references from the EZHONG case archive.
Marine Plate Rolling Machine: EZW11S-1800T*12000mm
Shanghai Zhenhua Heavy Industry (Group) Co., Ltd. (formerly known as Shanghai Zhenhua Port Machinery (Group) Co., Ltd., referred to as: ZPMC) is a well-known enterprise in the heavy equipment manufacturing industry. It is a state-owned A and B-share listed company. The controlling party is China Communications Construction Company, one of the world's top 500 companies. Zhenhua Port Machinery has changed its name to Zhenhua Heavy Industry, occupying the marine field. The company is headquartered in Shanghai, and has 8 production bases in Shanghai, Nantong, Jiangyin and other places, covering a total area of 10,000 mu, with a total coastline of 10 kilometers, especially the Changxing base at the mouth of the Yangtze River, which has a deep water coastline of 5 kilometers.
EZW11SY-200/4500 Heavy Plate Rolling Machine in Wind Towers
Lamprell is a leading provider of contracting services to the international energy sector. Driving strategy and growth through its Renewables, Oil & Gas and Digital business units, underpinned by almost half a century of expertise, Lamprell has worked hard to establish its reputation for delivering projects safely, on time and to budget. We employ more than 5,000 people, with our primary facilities located in Hamriyah, in the UAE. In addition, Lamprell has facilities in Saudi Arabia through a joint venture agreement.
SANY Heavy Industry High-Strength Steel Leveling Machine Case
The world's top 500 Sany Heavy Industry purchased 30 sets of EZHONG high-strength steel leveling machines. The plates manufactured by EZHONG leveling machines are sold throughout the world through...
