EZW11SXY-160-3500 Heavy Plate Rolling Machine in Cement Building Materials Machinery
Cases
Jiangsu peng fei group is one of the leading Chinese and global market rotary kiln, grinding equipment manufacturers, we are mainly engaged in equipment manufacturing, installation and production line, our service areas include building materials, metallurgy, chemical and environmental protection equipment design, manufacturing and sales, we as EPC service provider design, procurement, construction and trial operation of customized one-stop solution. We have established national enterprise technology centers, postdoctoral workstations and other innovative research and development platforms, and are committed to the research and development of new technologies such as energy storage and comprehensive utilization of resources.

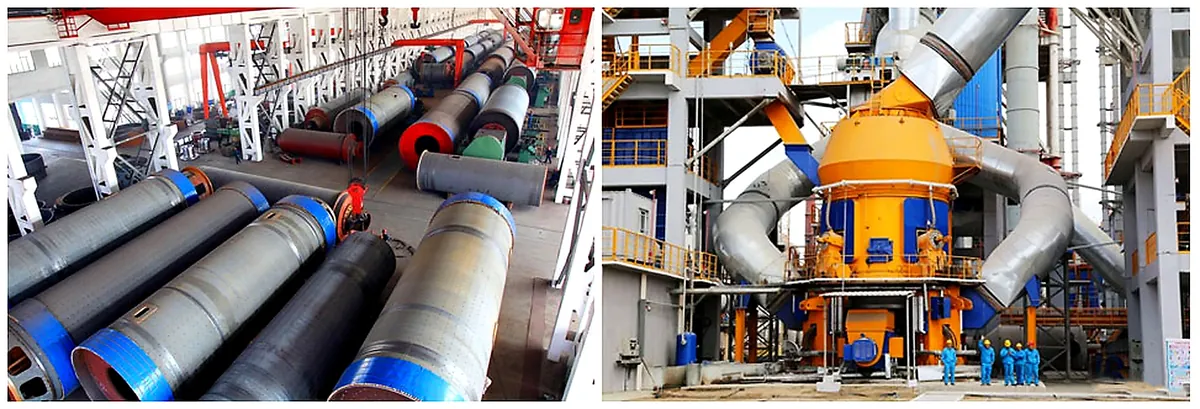

Jiangsu Pengfei Group Co., Ltd
http://www.pengfei.com.cn
Introduction: Jiangsu peng fei group is one of the leading Chinese and global market rotary kiln, grinding equipment manufacturers, we are mainly engaged in equipment manufacturing, installation and production line, our service areas include building materials, metallurgy, chemical and environmental protection equipment design, manufacturing and sales, we as EPC service provider design, procurement, construction and trial operation of customized one-stop solution. We have established national enterprise technology centers, postdoctoral workstations and other innovative research and development platforms, and are committed to the research and development of new technologies such as energy storage and comprehensive utilization of resources. Core technologies and production capacity represent the leading level of the industry. Complete national industry revitalization, national torch plan, national key new products, major equipment, independent innovation products, to participate in the cement industry with rotary kiln, the cement industry with pipe mill, and other national standards, the cement industry with cooling machine industry standard drafting, leading product rotary kiln system, grinding equipment, cement production line, the domestic industry for many years, is China cement machinery leading enterprises, the national building materials industry advanced collective, rotary kiln products in 2017 won the national manufacturing industry single champion. It has completed the construction of more than 100 cement production line projects, and its products are exported to Vietnam, Indonesia, Uzbekistan, Kazakhstan, Pakistan, India, Ethiopia, Zambia, Algeria, Brazil, Colombia, Bolivia and other more than 60 countries.
Order EZHONG products:

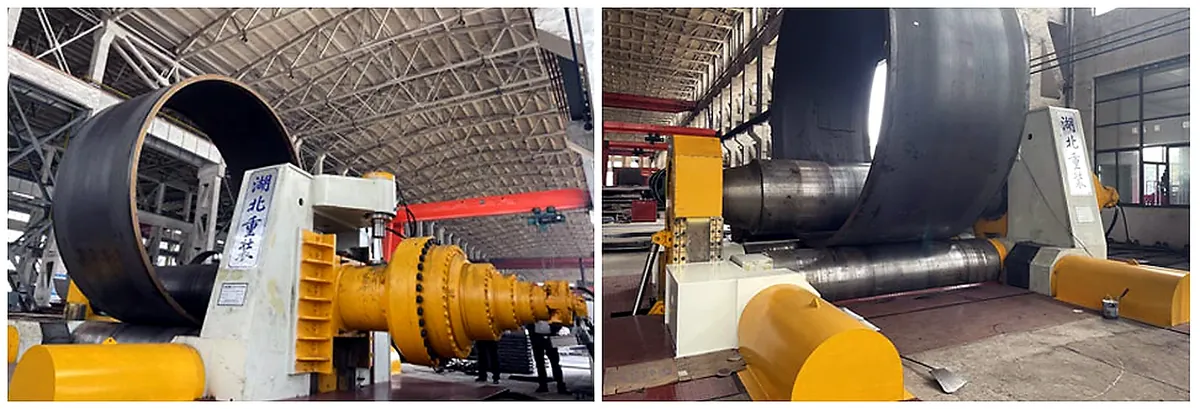

EZW11SXY-160*3500 heavy plate rolling machine
（EZW11SXY-160*3500 heavy plate rolling machine）
Main parameter table
Serial number | Item | Unit | Data |
1 | Machine specification | Mm | 160 × 3500 |
2 | Maximum thickness of coiled plate | Mm | 160 |
3 | Maximum pre-bending thickness | Mm | 140 |
4 | Straight edge coefficient | 2. 2.5. | |
5 | Coiling temperature | C | 20 |
6 | Yield limit of steel plate | MPa | 245 |
7 | Minimum workpiece diameter under full load | Mm | φ 4500 |
8 | Maximum width of coiled plate | Mm | 3500 |
9 | Effective length of work roll | Mm | 3580 |
10 | Upper roll diameter | Mm | 1030 |
11 | Lower roll diameter | Mm | 860 |
12 | Center distance of lower roll | Mm | 1000 to 1700 |
14 | Upper roll lift stroke | Mm | Through the line above 320 / below 260 |
15 | Bending speed | M/min | ≈ 3.5 |
16 | Maximum working pressure of master cylinder | MPa | 25 |
17 | System operating pressure | MPa | ≈ 20 |
18 | External dimensions (length × width × height) | Mm | 11000 × 6530 × 5495 |
