Press Machine Selection Guide
How to Select an Industrial Press: Application, Force, Stroke and Working Space
Compare vertical hydraulic presses and horizontal wheel presses across loading direction, pressing force (kN / tf), cylinder stroke, daylight opening, and tooling clearance.
How to Use This Technical Selection Guide
Use this guide to compare machine architectures, organize your workpiece parameters, and prepare structured inquiry specifications for your project. Final machine sizing and tooling feasibility are confirmed by EZHONG engineering based on your submitted drawings and process requirements.
1. Selection Starting Points & Scenarios
Match your primary workpiece types and production volume to candidate machine architectures.
Interference-fit mounting or dismounting of railway wheelsets, long motor rotors, or heavy industrial shaft assemblies
Engineering Rationale
Horizontal axle presses provide horizontal opposing reaction beams, wheel support trolleys, shaft centering, and long-travel rams specifically optimized for long-axis assemblies, while vertical presses with appropriate fixtures can also handle shorter bushings, bearings, and gears.
Next Step to Confirm
Provide shaft length, outer diameters, interference fit position, required pressing force (kN), and tooling space.

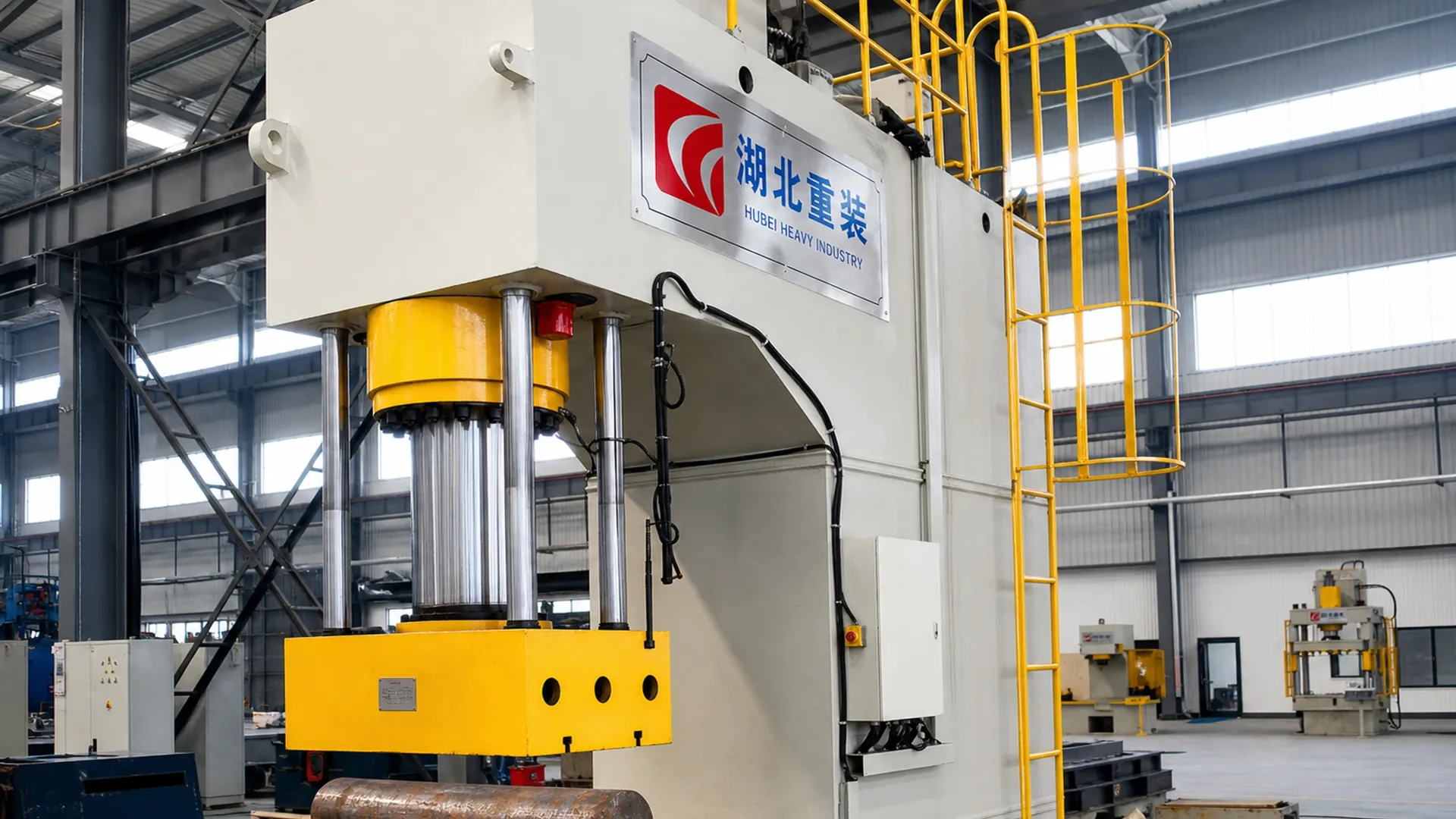

General industrial component forming, deep drawing, stamping, bending, flanging, or straightening
Engineering Rationale
Vertical hydraulic presses provide vertical slide motion, broad bolster tables, adjustable stroke, and selectable constant-pressure or constant-stroke PLC modes.
Next Step to Confirm
Identify forming process, die dimensions, required forming force (kN), daylight opening, and cycle rate.
Structural straightening, flanging, or heavy plate calibration
Engineering Rationale
Straightening requires rigid frames and sensitive inching control; if traveling ram, movable gantry, or specialized straightening anvils are required, note these in your inquiry for engineering feasibility review.
Next Step to Confirm
Submit workpiece geometry, support span, die drawings, and maximum expected off-center loading.
Project requirements initially stated only as nominal force (e.g., "500-ton press required")
Engineering Rationale
Press sizing is three-dimensional: nominal tonnage delivers force, but daylight opening, working stroke, and bolster dimensions dictate whether dies and workpieces physically fit. For instance, a press with inadequate stroke or daylight cannot perform deep drawing or tall part extraction even if nominal force is sufficient.
Next Step to Confirm
Request workpiece drawings, die shut heights, daylight clearance, and working stroke needs.
2. Workpiece Conditions to Clarify Upfront
Measure or confirm these geometric dimensions, yield strengths, and handling limits before requesting equipment quotes.
Parameter 01
Process Type & Loading Axis
Vertical forming, drawing, stamping, straightening, or vertical bushing/bearing press-fit vs. horizontal axial wheelset/shaft mounting and demounting.
Guides machine layout and workpiece handling orientation: vertical column/frame press vs. horizontal tie-rod axle press, based on workpiece length, handling ergonomics, and loading direction.
Parameter 02
Required Process Force (kN or metric tonne-force, tf) & Calculation Basis
Calculated forming force, known historical press tonnage, or interference fit pressure calculation.
Nominal tonnage sets cylinder diameter and frame structure. Hydraulic circuit working pressure is internal system pressure, not the process press force.
Parameter 03
Effective Working Stroke (mm)
The actual travel distance the ram must move to complete forming or insertion.
Stroke governs cylinder length, oil volume, cycle speed, and column stability under load.
Parameter 04
Usable Working Space: Daylight Opening vs. Tooling Height
For vertical presses: maximum opening (daylight), bolster size, die shut height, and loading clearance. For horizontal presses: shaft overall length, wheel diameter, and insertion depth.
Daylight is the open vertical distance when the ram is fully retracted; dies, workpiece, clamping fixtures, and loading/unloading clearance must fit within this space. Working stroke is not daylight.
Parameter 05
Cycle Speed, Holding Time & Production Rate
Approach speed, pressing speed, holding time, return speed, and parts per hour.
Determines motor power (kW), pump displacement, valve sizing, and oil cooling requirements.
Parameter 06
Inspection, Data Logging & Quality Standards
Need for force-displacement (F-S) curve recording, digital pressure display, or automated pass/fail limits.
Critical in railway and aerospace wheel/axle fitting; requires load cells, displacement sensors, and industrial PC integration.
3. Practical Comparison Matrix
Compare force orientation, working stroke, daylight clearance, off-center load resistance, and handling space across vertical and horizontal press configurations.
| Technical Dimension | Vertical Hydraulic Press | Horizontal Axle / Wheel Press | Key Procurement Implication |
|---|---|---|---|
| Primary Task & Force Direction | Vertical downward force for sheet forming, deep drawing, straightening, die stamping, and general pressing. | Horizontal opposing force for interference-fit mounting and dismounting of railway and heavy industrial wheelsets. | Long shafts and railway wheelset assemblies are typically prioritized for horizontal pressing due to handling and support; other press-fit, straightening, or forming tasks should be evaluated against force direction, daylight space, and clamping layout. |
| Force & System Pressure | Forming force in kN or metric tonne-force (tf) derived from cylinder area and working pressure (catalogue lists 2,000 to 60,000 kN general hydraulic press range at 25 MPa). | Axial press-fit/pull-off force (catalogue models list 2,500 to 10,000 kN nominal force across standard and heavy-duty frame configurations). | System pressure (MPa) is circuit pressure, not forming capacity. Always specify required force in kN or metric tonne-force (tf). |
| Stroke vs. Opening Space | Stroke is ram travel distance (600 to 1,200 mm in general catalogue range); daylight is full open space between table and slide at top dead center (1,000 to 2,200 mm). | Working stroke is ram travel (e.g., 600 mm or 700 mm); usable insertion length is bounded by the frame structure (e.g., 2,200 mm standard vs 3,500 mm long frame). | Do not confuse stroke with daylight opening. Tooling shut height and loading clearance require space beyond stroke. |
| Workpiece Support & Accommodations | Bolster table area (length × width) and T-slots. Auxiliary features such as die cushions or bottom hydraulic ejectors should be specified in your inquiry if required by your tooling. | Support trolleys and centering tooling. Specific adapters such as custom caliper inserts or anti-bending shaft supports should be specified in your inquiry for engineering match. | Evaluate how the workpiece will be loaded, supported against gravity, and centered relative to the ram axis. |
| Control & Process Feedback | PLC-controlled constant-pressure or constant-stroke modes; pressure display and limit switches. | Pressure gauges and stroke indicators. If automated force-displacement (F-S) curve recording or digital pass/fail archiving is required, state this requirement in your inquiry. | State whether digital quality compliance records (e.g., railway axle fitting records) are required by your client. |
4. Real Configuration Examples & Parameter Insights
Representative catalogue parameters illustrating how machine dimensions, force, and capacity interact across real workpiece envelopes.
Axle Press Sizing: Why Nominal Force and Stroke Do Not Dictate Usable Shaft Length
Catalogue Parameter Example
In published technical specifications for model EZY92-3150KN, both the standard-bed (600 mm stroke) and extended configurations deliver a 3,150 kN nominal force. Furthermore, stroke length and insertion depth vary by frame layout (e.g., 600 mm vs 700 mm working stroke; 2,200 mm vs 3,500 mm maximum insertion length).
Application & Engineering Context
This comparison demonstrates that identical nominal tonnage does not guarantee workpiece accommodation. Insertion depth specifies clearance into the reaction frame structure rather than total permissible shaft length. Whether a specific shaft fits depends on where the interference fit is located along the shaft, support overhang, and tooling clearance. Confirm frame size and stroke against workpiece drawings.
General Hydraulic Press Reference Range: Force, Stroke and Daylight Envelope
Catalogue Parameter Example
The 32-page catalogue (p. 28) outlines the general technical range for EZHONG industrial hydraulic presses: nominal force spanning 2,000 kN to 60,000 kN, working pressure of 25 MPa, ram stroke from 600 mm to 1,200 mm, and maximum daylight opening from 1,000 mm to 2,200 mm.
Application & Engineering Context
Daylight is the open vertical clearance when the ram is fully retracted; working stroke is piston travel. Tooling shut height, die thickness, and part extraction require dedicated clearance beyond the forming stroke. Evaluate daylight opening, die height, and stroke as distinct parameters alongside nominal force.
Application Scope for Horizontal Axle Presses
Catalogue Parameter Example
Horizontal axle presses are documented for cold press-fitting and dismounting of rolling bearings, gears, and wheels across railway rolling stock, mining machinery repair, heavy electrical motors, and metallurgical equipment.
Application & Engineering Context
The presence of horizontal axle technology does not imply universal tooling fit for every wheel geometry; custom caliper inserts, support trolleys, and reaction tooling must be confirmed against workpiece drawings.
5. Common Selection Pitfalls & Practical Rules
Common procurement assumptions that lead to daylight interference, inadequate working stroke, or off-center tonnage overload.
Can an industrial hydraulic press be selected by nominal tonnage alone?
Tonnage is only one dimension. A 500-ton press with small bolster dimensions, short stroke, or slow pressing speed may be completely unusable for deep drawing or large structural stamping.
Provide component drawings, die dimensions, required stroke, and daylight alongside target force.
Does system hydraulic pressure (e.g., 25 MPa) indicate press forming capacity?
25 MPa is the hydraulic circuit working pressure. Total pressing force depends on the cross-sectional area of the main cylinders (Force = Pressure × Area).
Specify forming force in kN or metric tonne-force (tf); let hydraulic engineers size the circuit pressure and cylinder diameters.
Can standard vertical hydraulic presses easily press-fit 3-meter railway axles?
Pressing a bearing onto a long axle vertically requires excessive ceiling height, awkward crane rigging, and risks shaft buckling without proper axial guiding. Horizontal presses are specifically engineered for this geometry.
Match machine orientation to workpiece handling and support: prioritize horizontal presses for long shafts and wheelsets, while evaluating vertical presses for general pressing, forming, or compact vertical press-fit operations.
6. Recommended Starting Points & Engineering Checks
Select a baseline configuration based on your primary workpiece, then verify these specific mechanical limits with our engineering team.
Guidance Summary
Prioritize a Horizontal Axle Press if your primary task is mounting or dismounting long shafts, railway wheelsets, or large motor rotors where horizontal support prevents shaft deflection and crane interference. Consider a vertical Hydraulic Press for sheet metal forming, straightening, drawing, or general shop pressing. In all cases, verify required force, stroke, and daylight clearance together.
Industrial press selection starts by evaluating workpiece geometry, force direction, and loading space: long shafts and railway wheelsets generally favor horizontal machines, whereas sheet forming, drawing, straightening, and compact press-fitting are typically handled on vertical presses.
Key Reasons for This Starting Focus:
- ✓Horizontal axle presses provide integrated reaction beams and trolleys specifically engineered for long shafts and interference fits.
- ✓Vertical presses offer versatile bolster tables and programmable stroke/pressure cycles for industrial dies.
- ✓Tonnage without verified daylight opening and stroke leads to costly clearance mismatches on the production floor.
Items Requiring Engineering Verification:
- !Calculate or verify required forming force with adequate process safety margin.
- !Check total die shut height, part loading clearance, and stroke.
- !On axle presses, verify overall shaft length, wheel diameter, and maximum insertion length.
- !Review quality inspection and force-displacement curve data logging requirements.
7. RFQ Preparation: Copyable Inquiry Checklist
Assemble your project details using this standardized template. Items marked Unknown can be confirmed during technical review.
RFQ Preparation
Inquiry Specification Checklist
Custom heavy equipment requires thorough engineering verification. You do not need to calculate precise machine force or roll diameters beforehand. Fill in your known workpiece constraints below; items not yet finalized can be marked as Unknown / To be confirmed or supplemented with part drawings.
Hydraulic Press Configuration Review
Use this checklist for general vertical hydraulic forming, deep drawing, straightening, or assembly pressing.
Subject: Hydraulic press configuration review Company / Contact / Email: Workpiece and process: Material / dimensions / drawing: Required force and basis, if known (kN or metric tonne-force, tf): Required working stroke: Tooling / fixture dimensions: Required opening and loading clearance, if known: Required table working area: Loading arrangement / off-centre load, if applicable: Required speed / holding time / output: Control or inspection requirements: Information still unknown (fill Unknown / To be confirmed): Please review force, stroke, working space and process configuration.
Have part drawings or complex tolerance specifications? Note key dimensions in your inquiry, or email CAD/PDF files directly to our engineering team following submission.
