W11S-195-3200 Plate Rolling Machine in Boiler Works
Cases
Harbin boiler factory enjoys a high reputation among domestic and foreign customers. With the design and manufacturing license for class A boiler and class AR1 pressure vessel, civil nuclear pressure equipment manufacturing qualification license, ASME "S", "U", "U2" design and manufacturing license certificate and regulatory steel seal, ASME nuclear power products N, NPT authorization certificate and NS certification certificate, and ISO9001, ISO14001, OHSAS18001 certification certificate.

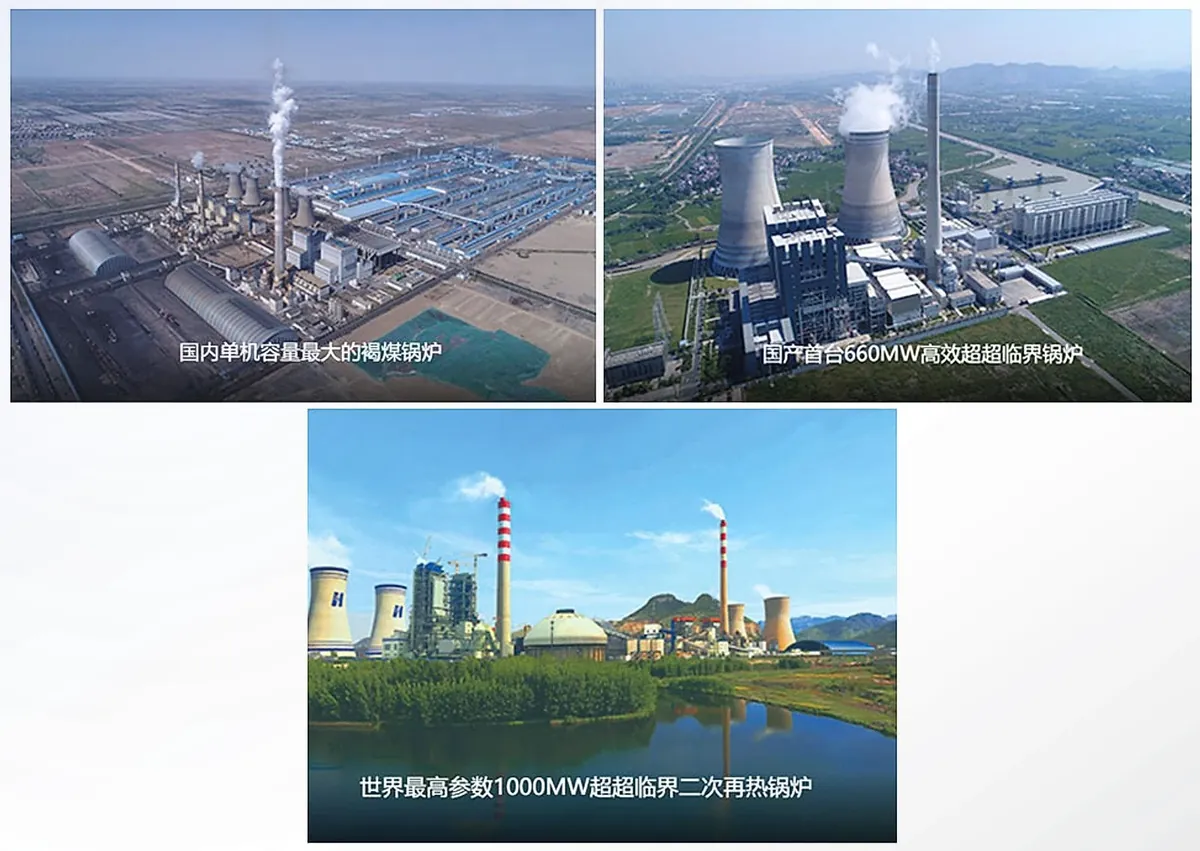

Harbin Boiler Factory
http://www.hbc.com.cn/
Introduction: Harbin boiler factory enjoys a high reputation among domestic and foreign customers. With the design and manufacturing license for class A boiler and class AR1 pressure vessel, civil nuclear pressure equipment manufacturing qualification license, ASME "S", "U", "U2" design and manufacturing license certificate and regulatory steel seal, ASME nuclear power products N, NPT authorization certificate and NS certification certificate, and ISO9001, ISO14001, OHSAS18001 certification certificate. The company has won the first batch of national first-class enterprises, National May Day Labor Award, National Advanced Enterprise in Ideological and Political Work, National Enterprise Management Excellence Award (Golden Horse Award) and a series of national honors.

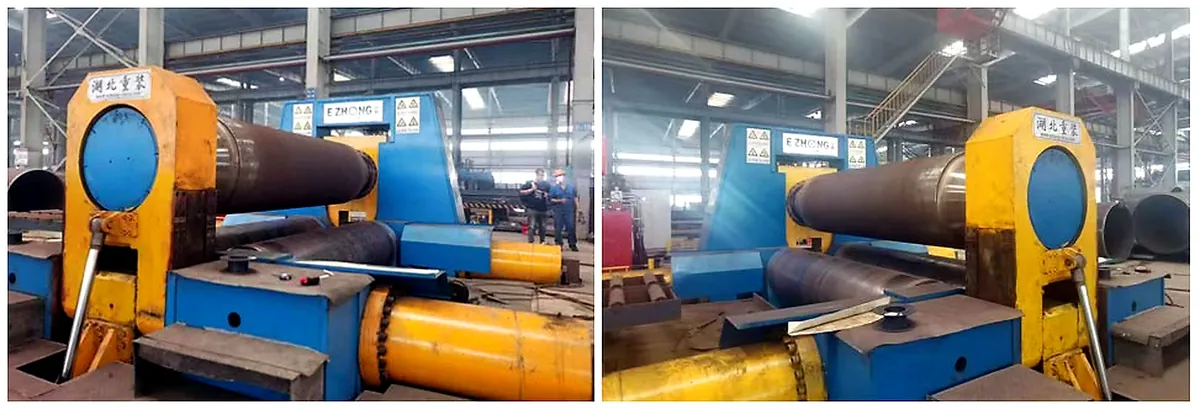

Order EZHONG products:
W11S-195×3200
（W11S-195×3200）
Main parameter table
NO. | Item | Unit | Data | |
1 | specifications | mm | XWIIS-195/280X3200YI | |
2 | Circulating temperature | C | -20C | 850C-1050C |
3 | Plate yield limit | MPa | 245 | 120 |
4 | The maximum width of the coil | mm | 3200 | 3200 |
5 | The maximum thickness of the coi | mm | 195 | 280 |
6 | Maximum prebending thickness | mm | 160 | 260 |
7 | Full-load minimum workpiece diamet | mm | θ3600 | |
8 | The upper roller diameter | mm | θ1150 | |
9 | Lower roller diameter | mm | θ950 | |
10 | The middle spacing of the lower roller | mm | 1200-1900 | |
11 | Volume plate speed | M/min | -32 | |
12 | Horizontal movement of single roll | mm | 0-400 | |
13 | Horizontal moving oil motor for maximum pressure | mm | 16 | |
14 | Horizontal movement speed | M/min | 0.40 | |
15 | The upper roller is pressed at a speed of | M/min | Heavy load -0.065, no load -0.16 | |
16 | Up roll up speed | M/min | -0.3 | |
17 | Up and down the roll | mm | Above 300 and below 360 through the line | |
18 | The upper roller drives power | K W | 55x4 | |
19 | Lower roller drives torque | KW M | 70x2 | |
20 | The maximum pressure of cast steel | WPa | 25 | |
21 | Inhead head over Angle | °C | 90+_1 | |
22 | Machine dimensions, length, width, and height | MM | 11000x6210x6605 | |
