Roller Leveler EZW43T-120-3000 7R in Marine Equipment
Cases

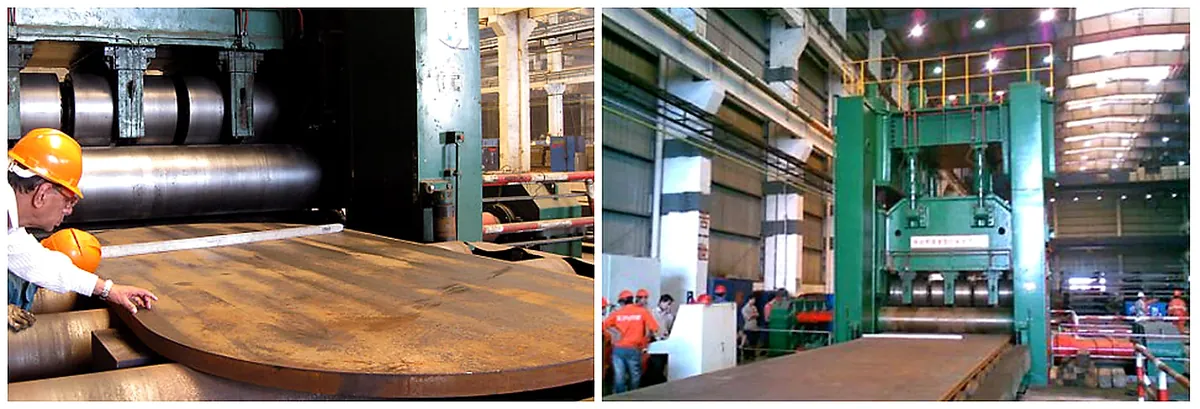

EZHONG heavy-duty roller leveler EZW43T-120-3000 7R delivery case for marine equipment manufacturing, featuring high-strength plate flatness control.
Order EZHONG product application:
Roller leveling machine: EZW43T-120*3000 7R
(roller leveler: EZW43T-120*3000 7R)
Main Parameter Table
No. | Name | Data | |
1 | Flat plate (normal atmospheric temperature | MP a yield limit | 485 Q345-A |
maximum gage mm | 90 120 | ||
mini mum gage mm | 25 | ||
maximum width mm | 3000 | ||
Choose the model | No parallel type + guide roll is adjustable | ||
Choose the number of roller | 7（Up 4 Down 3） | ||
2 | working roll | Roll number | 5（Up 2 Down 3） |
Roller distance / roller diameter mm | 800/660 | ||
barrel length mm | 3200 | ||
3 | guied roller | Roll number | 2（Up） |
Roller distance / roller diameter mm | 800/600 | ||
4 | back-up roll | Roll number mm | 790（Original 780） |
On the following numbers | 3 columns 6 rows (roller type) | ||
5 | moved cross beam | Press down stroke mm | +300-0 |
Pressing speed mm/min | 20 | ||
6 | The correction speed | 2.4-6.0 | |
7 | Correction accuracy | 1.0 | |
8 | Power of main motor | 5.7KWX5+18.5KWX2 | |
9 | KNTotal corrective force KN | 136000 | |
10 | Motor discharge roller road | 2 sets, 10m long, PLC control, infinite speed regulation | |
11 | Testimony platform | 2 sets, each set bearing 40T | |
12 | Relative elevation of the corrective stick roller surface | +-800 | |
13 | Host shape (length / width / ground height) | 12/7.0/9.2 | |
