EZY92 Horizontal Axle Press for Railway Wheelset and Bearing Assembly
Cold interference-fit press mounting and demounting for rolling stock and heavy machinery shafts
EZHONG delivered the EZY92-3150KN heavy-duty horizontal axle press for railway rolling stock wheelset and bearing maintenance. The system provides 3,150 kN opposing axial force, rail support trolleys, and up to 3,500 mm insertion length to prevent shaft deflection during assembly.
Railway Rolling Stock Wheelset & Heavy Shaft Assembly
In railway vehicle maintenance depots, locomotive repair facilities, and heavy electrical machinery manufacturing, interference-fit assembly and demounting of rolling bearings, brake discs, and wheelsets onto long axles represent demanding engineering tasks. Conventional vertical hydraulic presses require extreme ceiling clearance, prolonged overhead crane rigging, and introduce severe buckling risks for slender shafts under heavy axial loads.
To eliminate these operational bottlenecks, EZHONG engineered the EZY92 series heavy horizontal wheel-and-axle press. Featuring an opposing dual-column reaction frame, movable resistance beam, and rail-guided hydraulic support trolleys, the machine provides automated height centering and rigid axial guidance, ensuring damage-free cold press-fitting and demounting of precision bearing journals and wheels.

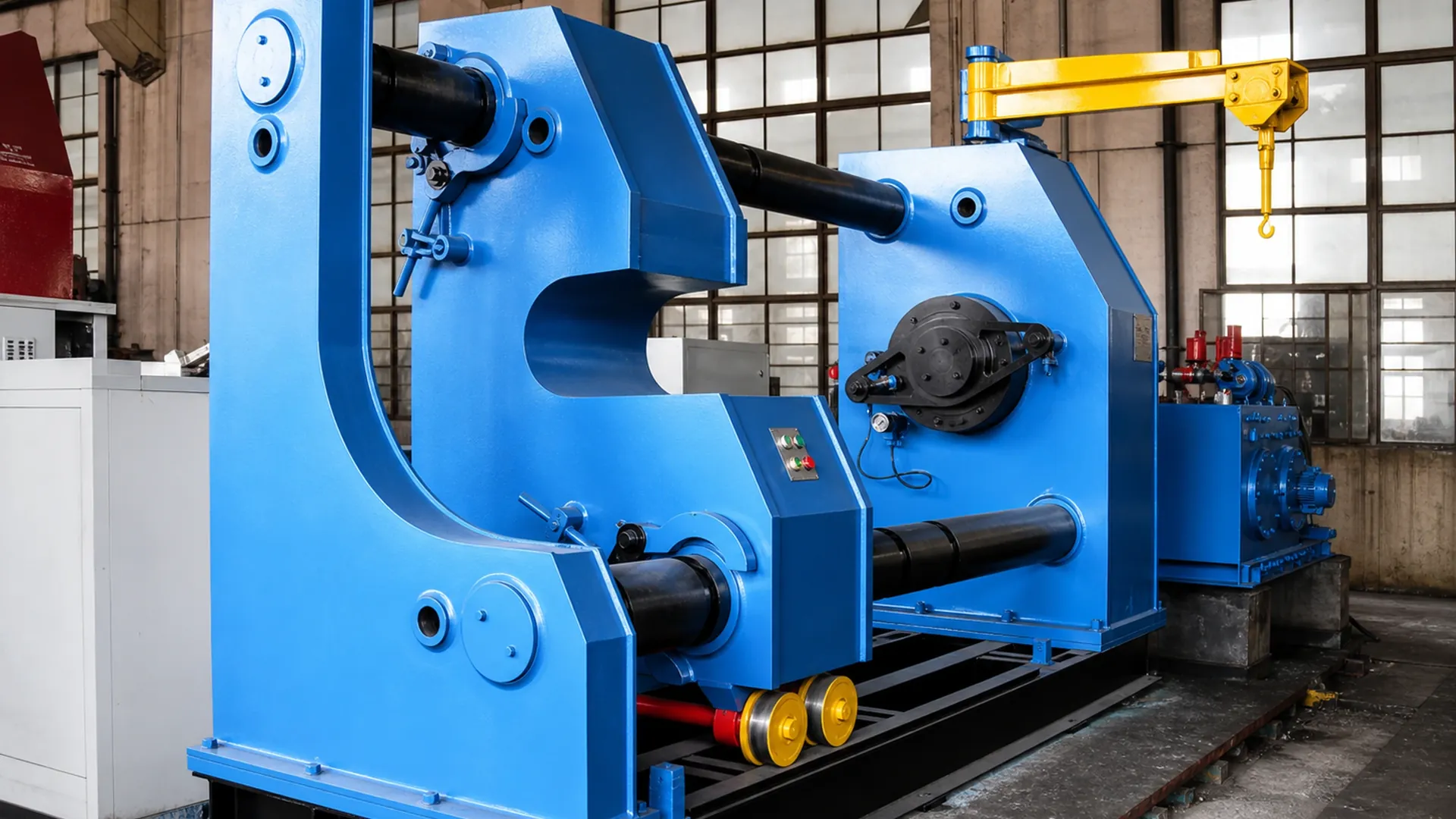

(EZHONG EZY92 Series Heavy-Duty Horizontal Wheel and Axle Press)
Order EZHONG products:
EZY92 Horizontal Axle / Wheel Press (EZY92-3150KN)
Key Process Challenges & Engineering Solutions
Shaft Deflection Prevention: Equipped with dual adjustable support trolleys that accommodate stepped axles and distribute component weight, preventing runout and seal damage during pressing.
Usable Working Envelope: Engineered with extended insertion depth (up to 3,500 mm in long-frame configuration), allowing long locomotive and industrial rotor shafts to pass through the reaction structure.
Precision Pressing Control: Stepless hydraulic speed regulation (0–4 mm/s) paired with digital pressure and stroke monitoring, safeguarding high-precision interference fits against galling or thermal overload.
Overload & Safety Interlocks: Dual hydraulic circuit safety featuring pressure relay shutdown and relief valve overflow protection, complemented by emergency-stop controls on both the fixed beam and mobile console.
Main Technical Parameter Table
Serial No. Technical Parameter Unit EZY92-3150KN Standard EZY92-3150KN Long 1 Nominal Pressing Force kN 3,150 3,150 2 Equivalent Force (Metric Ton-Force) tf ~320 ~320 3 Maximum Ram Working Stroke mm 600 700 4 Maximum Wheel Diameter Accommodated mm φ 1,300 φ 1,850 5 Maximum Shaft Diameter at Fit Location mm φ 350 φ 600 6 Maximum Usable Insertion Length mm 2,200 3,500 7 Pressing Speed Range mm/s 0 – 4 0 – 4 8 Hydraulic System Working Pressure MPa 25 25 9 Main Motor Power kW 18.5 18.5 10 Machine Overall Dimensions (L × W × H) mm 5,360 × 1,200 × 2,400 6,940 × 1,600 × 2,560
For custom wheelset dimensions, force-displacement (F-S) curve recording options, or specialized tooling calipers, submit your workpiece drawings for technical configuration review.
