EZW43T-40-3000 9 Rollers 500mpa in Composite Plate
Cases
Anhui gold composite materials co., LTD., is specialized in the research and development, production, management of professional companies, from the domestic large steel enterprises Nanjing iron and steel co., LTD., only twenty kilometers in Nanjing iron and steel group large modern mill, testing equipment and advanced management, insist on independent innovation and absorb the combination of advanced technology, develop and master the key technology of hot rolled metal composite plate, has the domestic talent in the field of hot rolled composite plate, provide customers with the most reliable metal composite materials. The products are widely used in chemical industry, water conservancy, electric power, salt industry, aluminum industry, medicine, food, paper making, grain and oil machinery, pharmaceutical machinery, household appliances and other fields.

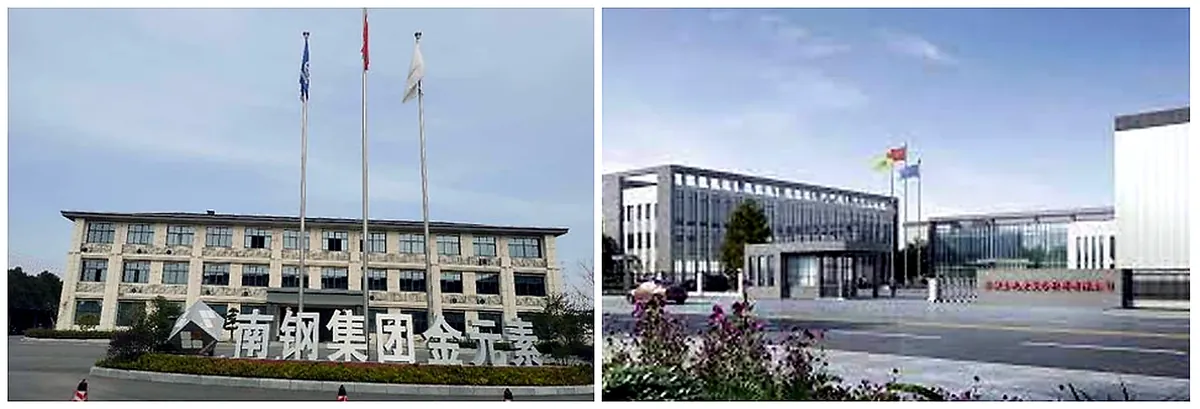

(1) Anhui Gold Element Composite Material Co., LTD
http://www.jysah.com
Introduction: Anhui gold composite materials co., LTD., is specialized in the research and development, production, management of professional companies, from the domestic large steel enterprises Nanjing iron and steel co., LTD., only twenty kilometers in Nanjing iron and steel group large modern mill, testing equipment and advanced management, insist on independent innovation and absorb the combination of advanced technology, develop and master the key technology of hot rolled metal composite plate, has the domestic talent in the field of hot rolled composite plate, provide customers with the most reliable metal composite materials. The products are widely used in chemical industry, water conservancy, electric power, salt industry, aluminum industry, medicine, food, paper making, grain and oil machinery, pharmaceutical machinery, household appliances and other fields.
Order EZHONG products:

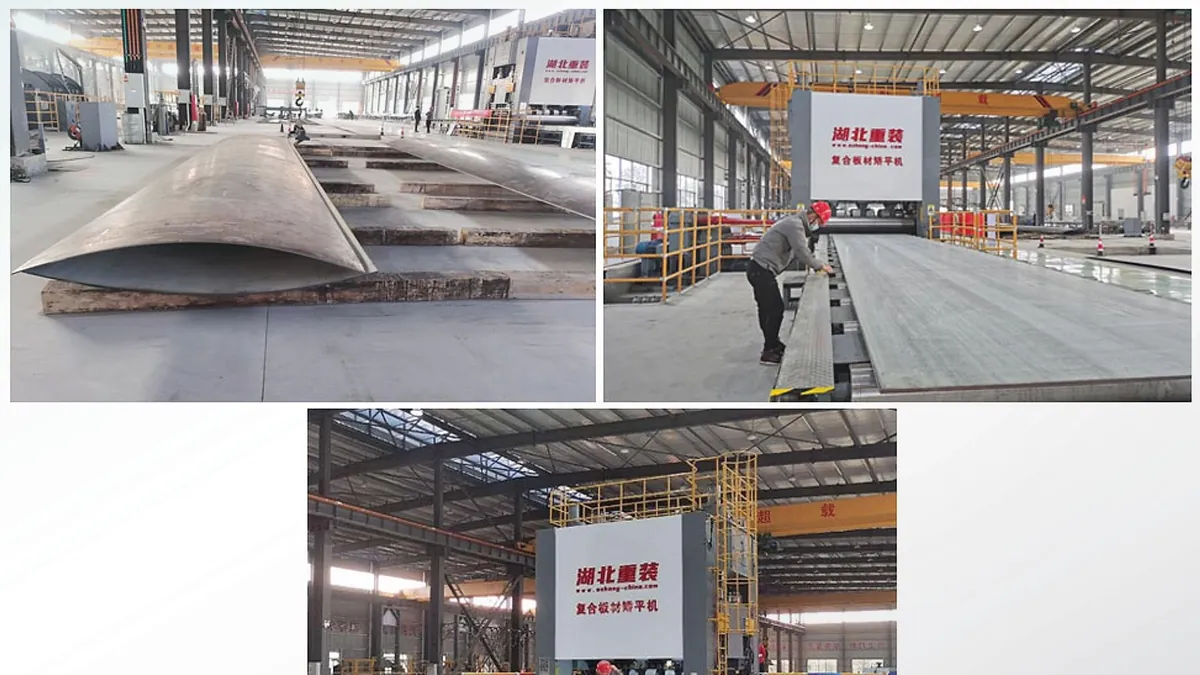

EZW43T-40*3000 9 rollers 500mpa
( EZW43T-40*3000 9 rollers 500mpa)
Main parameter table
1 | Plate to be corrected | Yield Limit (MPa) | 500 |
Maximum plate thickness (mm) | 40 | ||
Minimum plate thickness (mm) | 10 | ||
Maximum plate width (mm) | 3000 | ||
2 | working roll | Roll pitch(mm) | 400 |
Roller diameter (mm) | 340 | ||
Roll number | 7（Up 3 Down 4） | ||
Effective length of roller body (mm) | 2300 | ||
3 | Guide (edge) roller | Roll pitch(mm) | 440 |
Roller diameter (mm) | 440 | ||
Roll number | 2 （Up） | ||
4 | supporting roll | Roll pitch(mm) | 400 |
Roller diameter (mm) | 390 | ||
column number | 3 | ||
5 | moved cross beam | Down trip (mm) | +60～-20 |
Maximum swing amount (mm) | ±7 | ||
Down speed (mm / min) | 25 | ||
rising height (mm) | +300 | ||
6 | Corrective speed (mm / min) | 5 | |
7 | Corrective accuracy (mm / 2m²) | 3 | |
8 | Main motor power (kW) | 15×7+7.5×2 | |
9 | Lower motor power (kW) | 7.5×2 | |
10 | Overall dimensions of the main engine (length, width, ground and height) mm | 9540×4530×7605×5895 | |
(2) Anhui Sinosteel United Composite Material Co., LTD
http://www.gallianz.com.cn

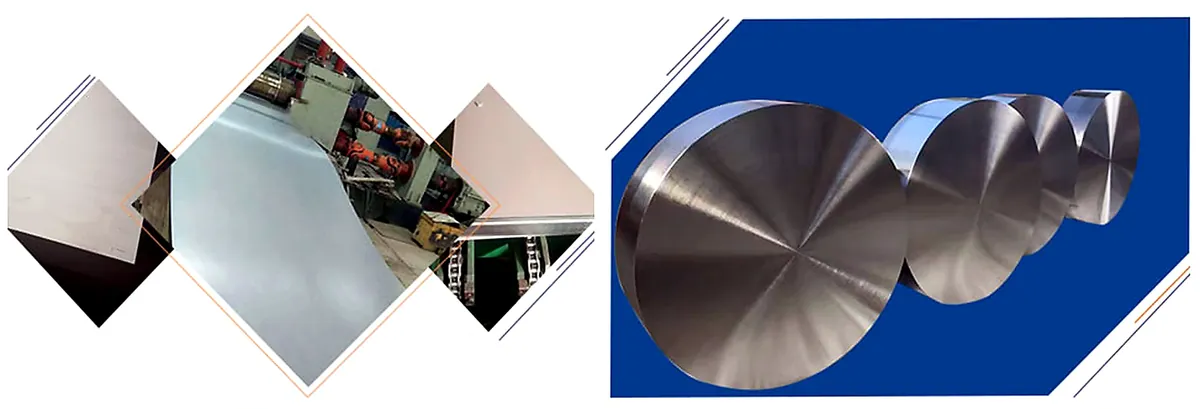

Introduction: Anhui Sinosteel United New Material Co., Ltd. is a high-tech enterprise specializing in the research and development, production and sales of stainless steel / steel, titanium / steel, nickel base alloy / steel and other composite materials. In the field of rolling composite, explosion + rolling composite, it is committed to building a "little giant" enterprise of the whole industry chain. The company covers an area of 100 mu, with fixed assets of 120 million yuan, has 6 core technology invention patents, and an annual production of 20,000 tons of various metal composite plates. For a long time, the company relies on science and technology to seize the commanding heights of the industry, to create value for users, is our unswerving pursuit. Successfully developed (austenite, ferrite, martensite, biphase) stainless steel / steel composite plate, titanium / steel composite plate, single (double) metal composite coil, nickel base alloy composite plate, titanium and titanium alloy plate (coil) and other five series of products, product performance, higher than the national standard.
Order EZHONG products:

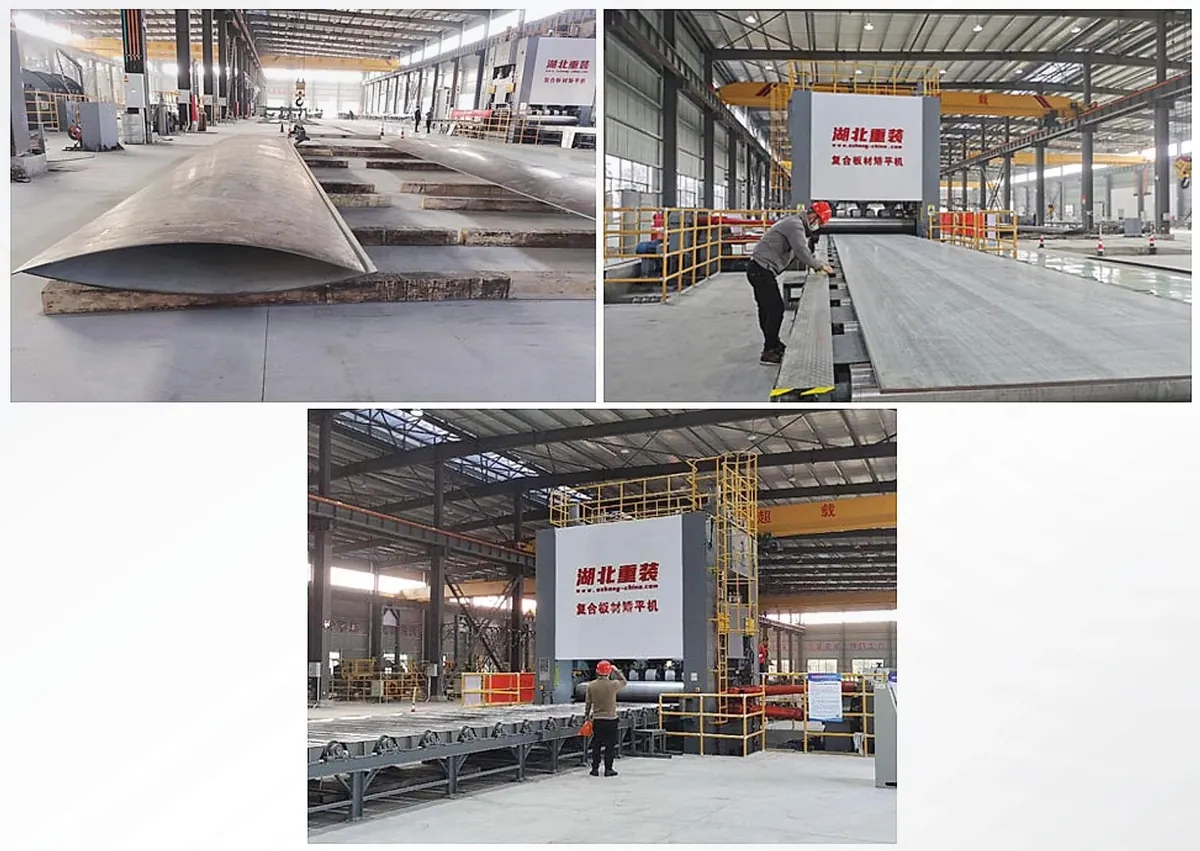

EZW43T-30*4200 9 rollers 360mpa
(EZW43T-30 * 4200 9 roller 360 mpa)
Main parameter table
NO. | NAME. | parameter | |
1 | Flat plate | yield limit MPa | 360 |
maximum gage mm | 30 | ||
maximum breadth mm | 4000 | ||
minimum gage mm | 8 | ||
2 | working roll | Roll number | 5 (Up 2 down 3) |
roll(er)/spacing rollerMM | 360/310 | ||
barrel length mm | 4200 | ||
3 | guied roller | Roll numbermm | 2(Up2) |
Roller distance / roller diameter mm | 400/460 | ||
barrel length mm | 4200 | ||
4 | supporting roll | Roller distance / roller diameter mm | 360/355 |
column | 3 | ||
5 | moved cross beam | Press the schedule mm | +180～－25（hydraulic balance） |
Pressure down the speed mm | 25 | ||
The biggest swing mm | ±7 | ||
6 | The correction velocity mm/s | 100 | |
7 | The correction accuracy mm / m | 1.5-2 | |
8 | Power of main motor | 15kW×5+5.5Kw×2 | |
9 | Pressure down motor power | 5.5kW×2 | |
10 | Maximum load feature WX | 1300000N. m(Actual calculation 12960 00N.m) | |
11 | Total correction force kN | 30000(Actual calculation 28800) | |
12 | mmThe relative elevation of the correction roller surface is mm | +800 | |
13 | Feed and outlet electric roller channel | 4m long × 3 sets | |
14 | External size: long / width / height / ground height (m) | 9.4/3.8/7.2/5.6 | |
