Cases
EZW43C\EZW43B Series High Strength Leveler in Engineering Machinery
Cases
Sany Heavy Industry Co., Ltd. (SANY) was founded by Sany Group in 1994, and rose rapidly through independent innovation by breaking the traditional "technological phobia" of Chinese people. On July 3,2003, Sany Heavy Industry was listed in A shares (stock code: 600031). In July 2011, Sany was listed in the Financial Times Global 500 companies with a market capitalization of $21.584 billion, making it the only Chinese machinery company to make the list. In January 2012, Sany acquired "the world's first concrete brand", Putzmeister), changing the global competition pattern in the industry

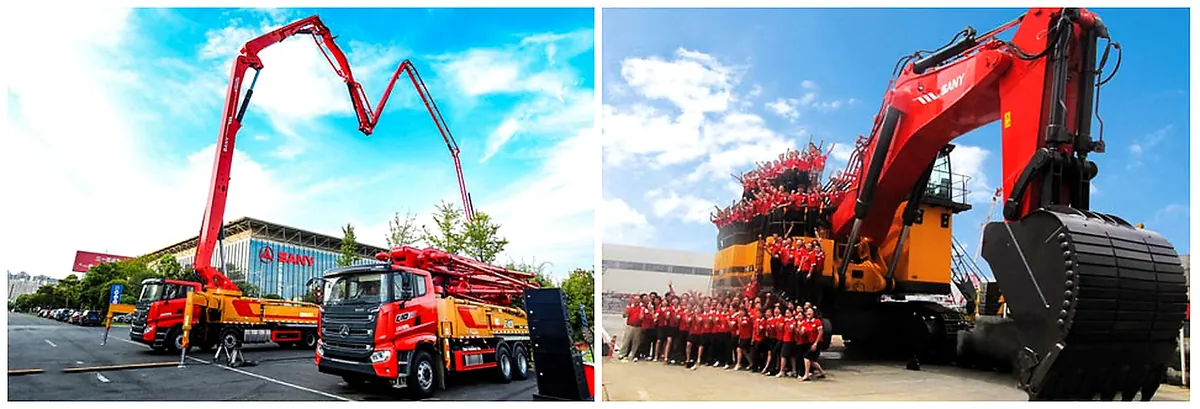

Sany Heavy Industry Co., Ltd
Brief Introduction: Sany Heavy Industry Co., Ltd. (SANY) was founded by Sany Group in 1994, and rose rapidly through independent innovation by breaking the traditional "technological phobia" of Chinese people. On July 3,2003, Sany Heavy Industry was listed in A shares (stock code: 600031). In July 2011, Sany was listed in the Financial Times Global 500 companies with a market capitalization of $21.584 billion, making it the only Chinese machinery company to make the list. In January 2012, Sany acquired "the world's first concrete brand", Putzmeister), changing the global competition pattern in the industry
Order EZHONG products:

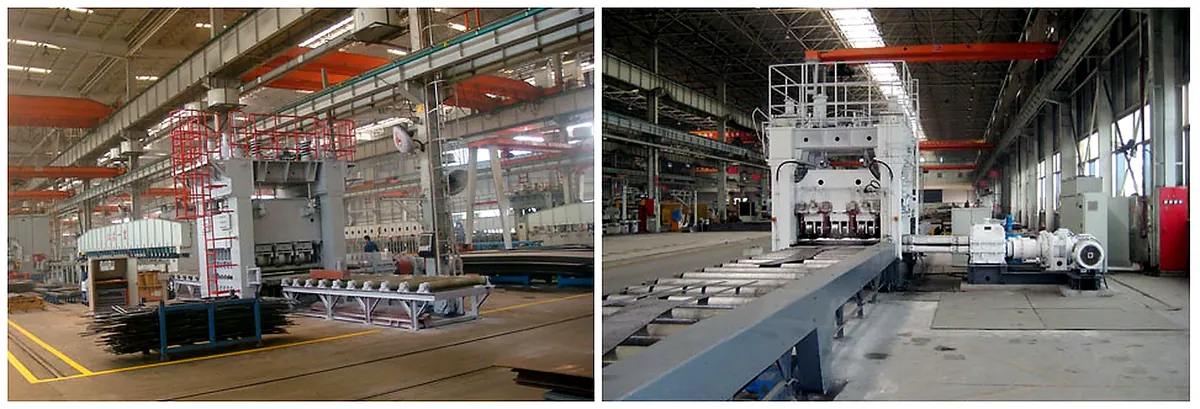

EZW43C\EZW43B series high strength leveler
(EZW43C\EZW43B series high-strength leveling machine)
Main parameter table
name | EZW43BY-15×1500.15R1000 | |||
1 | Flat plate | Yield Limit (Mpa) | 1000 | |
Maximum thickness of h (mm) | 15 | 8 | ||
Sheet width b (mm) | 1000 | 1500 | ||
Minimum thickness hmin (mm) | 4 | |||
2 | working roll | Number of rolls n (one more lower roll) | 15 | |
troll spacing t | 185 | |||
Roller diameter D (mm) | 175 | |||
Effective roller length: L (mm) | 1700 | |||
3 | back-up roll | column number | 3 | |
Roll distance t1 / roll diameter D1 (mm) | 370/340 | |||
4 | moved cross beam | mmPress the stroke mm | +45～-17 | |
Press down the speed of mm / min | 25 | |||
Maximum swing | ±5 | |||
mmrising height mm | +130 | |||
5 | Normal speed v (5m / min at full load) | 3.0～8.0 | ||
6 | Correction accuracy | 8mm＜h≤15mm，≤1.0 6mm＜h≤8mm，≤1.2 4mm＜h≤6mm，≤1.5 | ||
