EZW11SYT-160-3500 Plate Rolling Machine in Pressure Vessels
Cases
Shandong Yunyi Heavy Industry Co., Ltd. has the U, U2 certification qualification, A1, A2 class pressure vessel design and manufacturing license issued by ASME. Has many years of design and manufacture installation of petroleum, chemical, nuclear power, rubber, steel, thermoelectric, energy conservation, environmental protection and other fields of complete sets of equipment experience, is the national petroleum, chemical equipment industry backbone enterprises, China's council for the promotion of special equipment safety and energy conservation member units, China chemical equipment association director unit, director of special equipment association of Shan dong province.

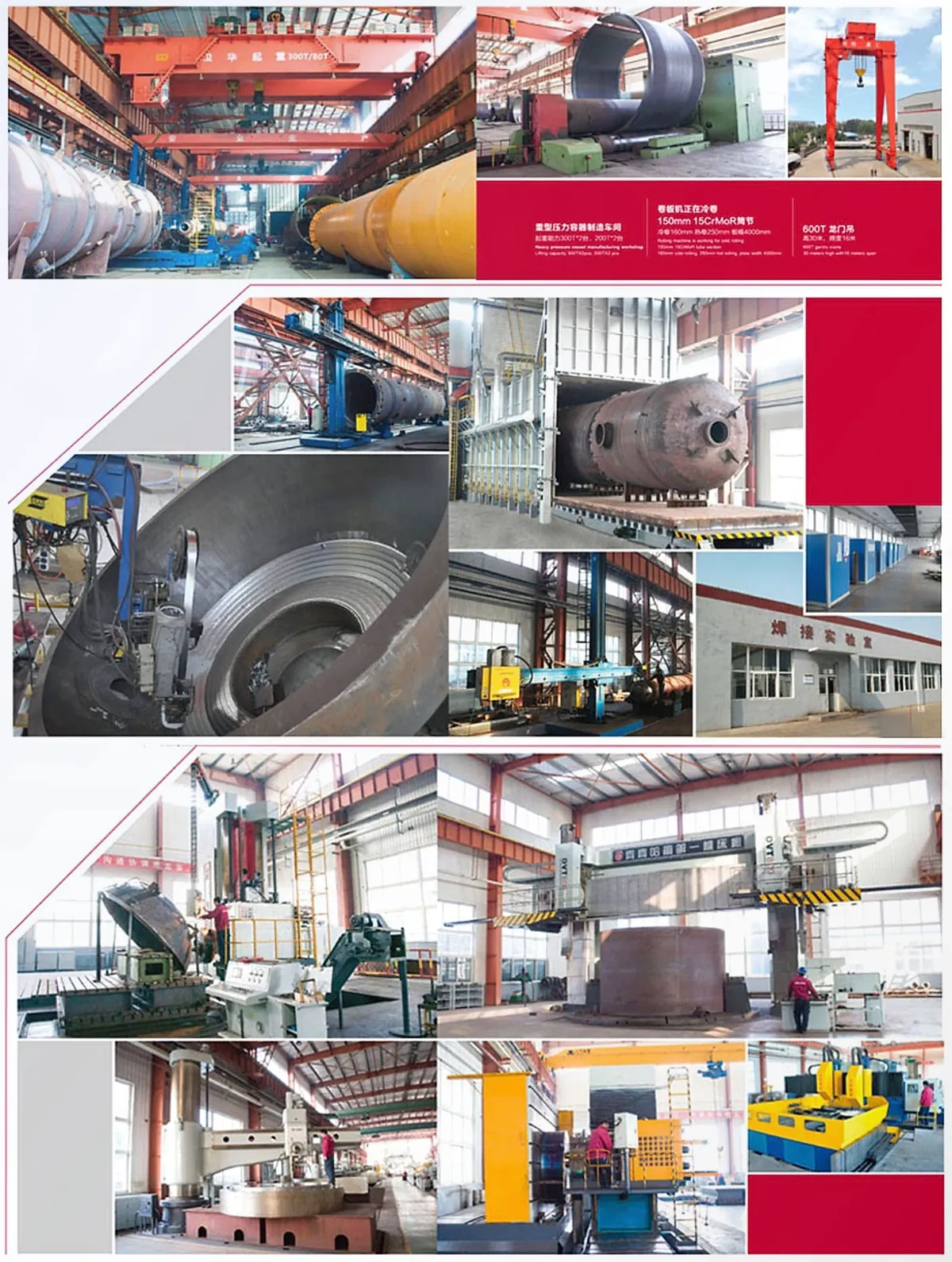

Qingdao Soft Control Cloud Ant Heavy Industry Co., LTD
http://www.yunyizhonggong.com
Introduction: Shandong Yunyi Heavy Industry Co., Ltd. has the U, U2 certification qualification, A1, A2 class pressure vessel design and manufacturing license issued by ASME. Has many years of design and manufacture installation of petroleum, chemical, nuclear power, rubber, steel, thermoelectric, energy conservation, environmental protection and other fields of complete sets of equipment experience, is the national petroleum, chemical equipment industry backbone enterprises, China's council for the promotion of special equipment safety and energy conservation member units, China chemical equipment association director unit, director of special equipment association of Shan dong province.
Order EZHONG products application:

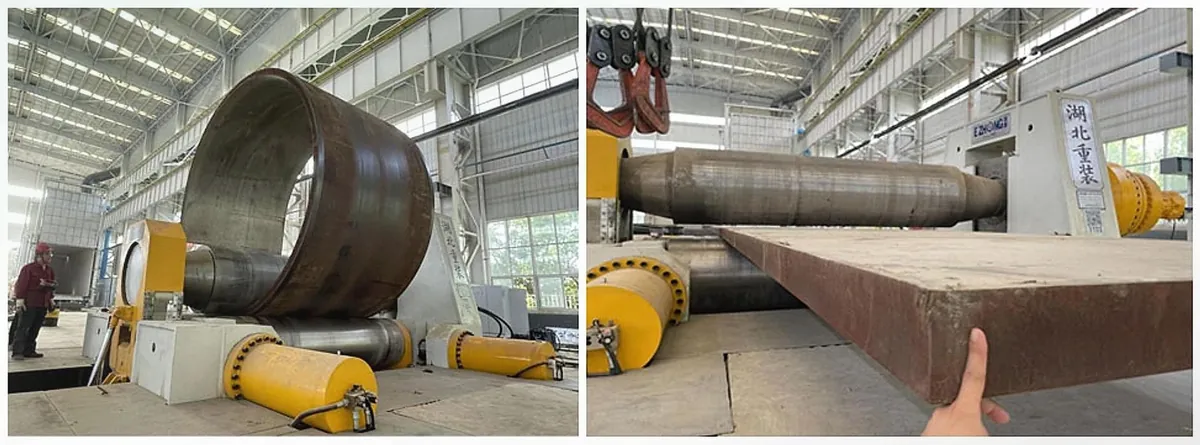

EZW11SYT-160×3500 plate rolling machine
（EZW11SYT-160×3500 plate rolling machine）
Main parameter table
NO. | ITEM | UNIT | DATA | |
1 | specifications | mm | 160×3500（245Mpa） | |
2 | The upper roller diameter | mm | 1060 | |
3 | Lower roller diameter | mm | 860 | |
4 | Lower roller material | 42CrMo | ||
5 | The upper roller is pressed down | The cylinder drive upper roller moves up and down along the vertical guide rail | ||
7 | Straight edge coefficient | mm | 2-2.5 times | |
8 | Circulating temperature | C | Cold rolled at 20 °C | |
9 | Plate yield limit | MPa | 245 | 345 |
10 | The maximum width of the coil | mm | 3500 | 3500 |
11 | Minimum drum diameter at full load | mm | Φ4000mm | Φ4000mm |
12 | maximum thickness of bending plate | mm | 160 | 130 |
13 | Maximum prebending plate thickness | mm | 140 | 110 |
14 | The largest school has a thick board | mm | 125 | 105 |
15 | Two lower roll center distance | mm | 1050～1750 | |
16 | Effective length of the working roller | mm | 3580 | |
17 | Upper roller drives the total torque | t.m | 120 | |
18 | Lower roller drive total torque | t.m | 2*3 | |
19 | Horizontal movement speed of the lower roller cylinder | mm/min | 350 | |
20 | Pressure the cylinder diameter | mm | Ф870/Ф370/630 | |
21 | Total pressure under force | t | 2430 | |
22 | Horizontal push for cylinder diameter | mm | Ф480 | |
23 | horizontal thrust | TONS | 900 | |
24 | Speed of working on the roller | mm/min | 0～200 | |
