EZW11SY-160-3200 Heavy Plate Rolling Machine in Pressure Vessels
Cases
Yongsheng Machinery Industry (Kunshan) Co., Ltd. mainly provides all kinds of pressure vessels and services for oil refining, chemical, petrochemical, textile, food and new energy industries, and the products include all kinds of low, medium and high pressure heat exchanger, reactor, separation containers, storage containers. Main customers are constant petrochemical, ShengHong petrochemical, Formosa plastics group, Shanghai secco petrochemical, British color, tripod, xiang lu petrochemical PTA factory, hualian sanxin PTA factory, dow chemical, Germany, Germany, Germany GEA, Germany, contus, America, the FW, American sellanis, Beijing, world, Li Changrong chemical, Changchun group, China, east petrochemical, Asia silicon industry, datang international, Japan, mitsui shipbuilding, YARA navigation technology, China chemical tripod Ningbo engineering company, Chengdu into engineering company, xi'an China land engineering company...
Yongsheng Machinery Industry (Kunshan) Co., Ltd
http://www.ys-ks.com/?lang=zh_CN

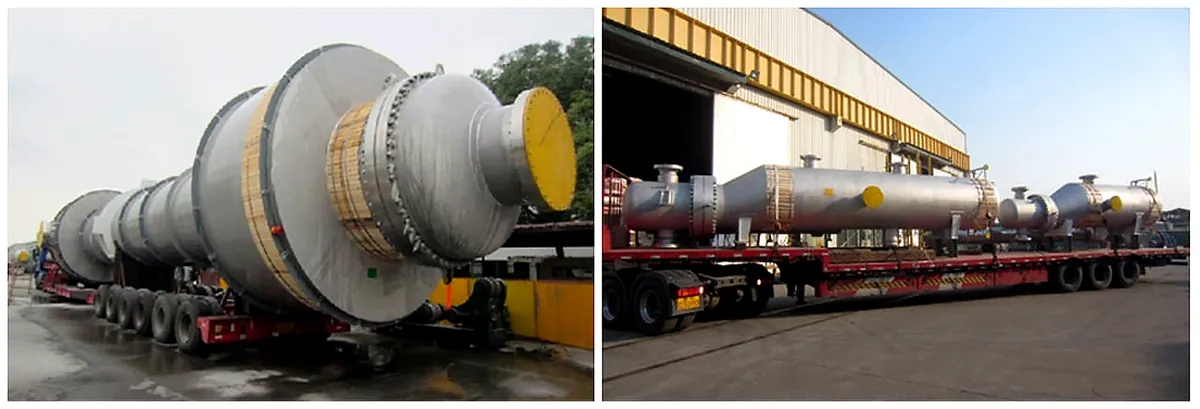

Introduction: Yongsheng Machinery Industry (Kunshan) Co., Ltd. mainly provides all kinds of pressure vessels and services for oil refining, chemical, petrochemical, textile, food and new energy industries, and the products include all kinds of low, medium and high pressure heat exchanger, reactor, separation containers, storage containers. Main customers are constant petrochemical, ShengHong petrochemical, Formosa plastics group, Shanghai secco petrochemical, British color, tripod, xiang lu petrochemical PTA factory, hualian sanxin PTA factory, dow chemical, Germany, Germany, Germany GEA, Germany, contus, America, the FW, American sellanis, Beijing, world, Li Changrong chemical, Changchun group, China, east petrochemical, Asia silicon industry, datang international, Japan, mitsui shipbuilding, YARA navigation technology, China chemical tripod Ningbo engineering company, Chengdu into engineering company, xi'an China land engineering company, etc. Products in addition to domestic sales are also exported to the Middle East, South Asia, North America, South America, Europe, Japan and other countries.

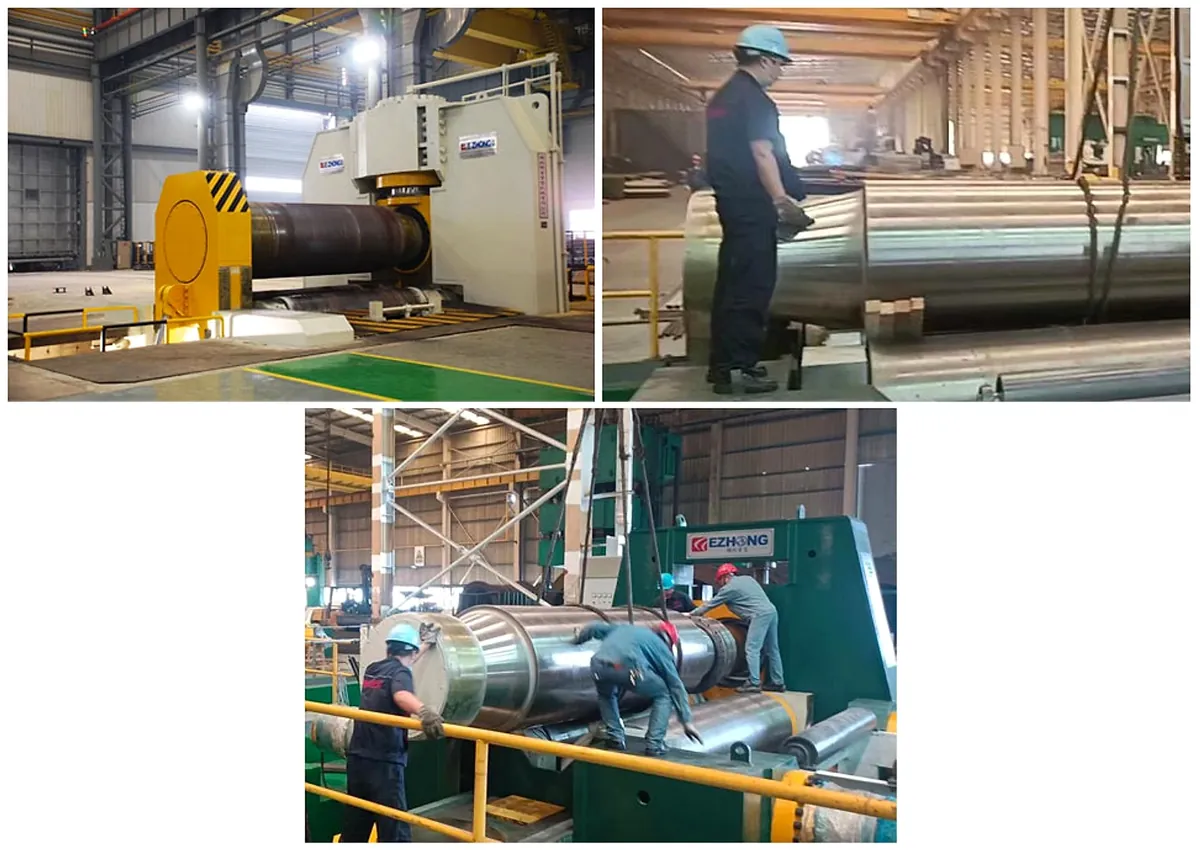

Order EZHONG products application:
EZW11SY-160*3200 heavy plate rolling machine
（EZW11SY-160*3200 heavy plate rolling machine)
Main Parameter Table
NO. | ITEM | UNIT | DATA | |
1 | specifications | mm | 160×3200（245Mpa） | |
2 | The upper roller diameter | mm | 1060 | |
3 | Lower roller diameter | mm | 860 | |
4 | Upper and lower roller material | 42CrMo | ||
5 | Straight edge coefficient | mm | 2.5 Times thick plate | |
6 | Circulating temperature | C | 20 C cold roll | |
7 | Plate yield limit | MPa | 245 | 345 |
8 | The maximum width of the coil | mm | 3200 | 3200 |
9 | Minimum drum diameter at full load | mm | Φ3500mm | Φ3500mm |
10 | maximum thickness of bending plate | mm | 160 | 130 |
11 | Maximum prebending plate thickness | mm | 140 | 110 |
12 | The largest school has a thick board | mm | 125 | 105 |
13 | Two lower roll center distance | mm | 1050～1750 | |
14 | Effective length of the working roller | mm | 3280 | |
15 | Upper roller drives the total torque | t.m | 120 | |
16 | Lower roller drive total torque | t.m | 2*3 | |
18 | Horizontal movement speed of the lower roller cylinder | mm/min | 350 | |
19 | Pressure the cylinder diameter | mm | Ф870/Ф370/630 | |
20 | Total pressure under force | t | 2430 | |
21 | Horizontal push for cylinder diameter | mm | Ф480 | |
22 | horizontal thrust | t | 900 | |
23 | Speed of working on the roller | mm/min | 0～200 | |
24 | The power of the machine | Kw | ≈300 | |
25 | Horizontal movement of the lower roll on each side | mm | 0～650 | |
