EZW11SXY-20-12000 Three-Roll Plate Rolling Machine in Tank Car Manufacturing
Cases
The company is located in Jakarta, focusing on mechanical and electrical engineering, design and construction services, including shopping malls, supermarkets, hotels, apartments and other large engineering projects, to provide customers with one-stop professional services.

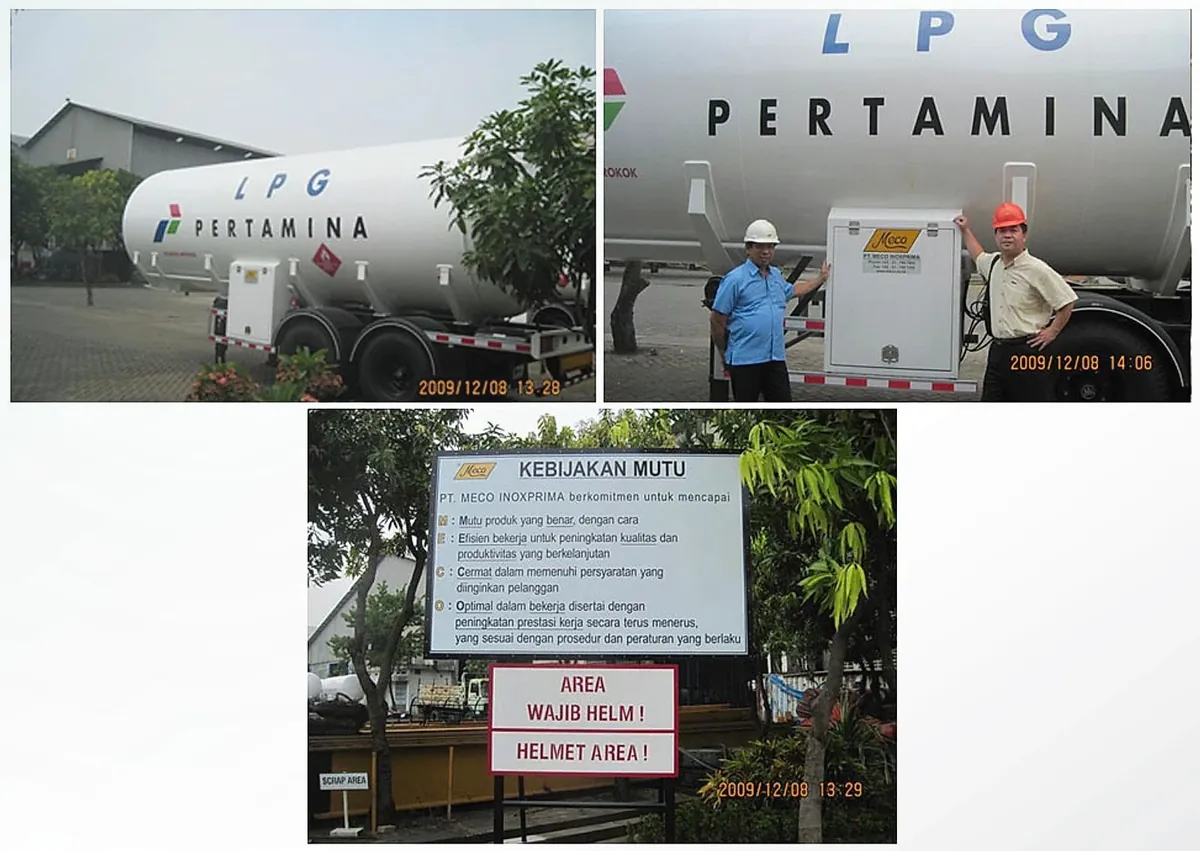

MECO Corporation, Indonesia
https://www.meco.co.id
Introduction: The company is located in Jakarta, focusing on mechanical and electrical engineering, design and construction services, including shopping malls, supermarkets, hotels, apartments and other large engineering projects, to provide customers with one-stop professional services.

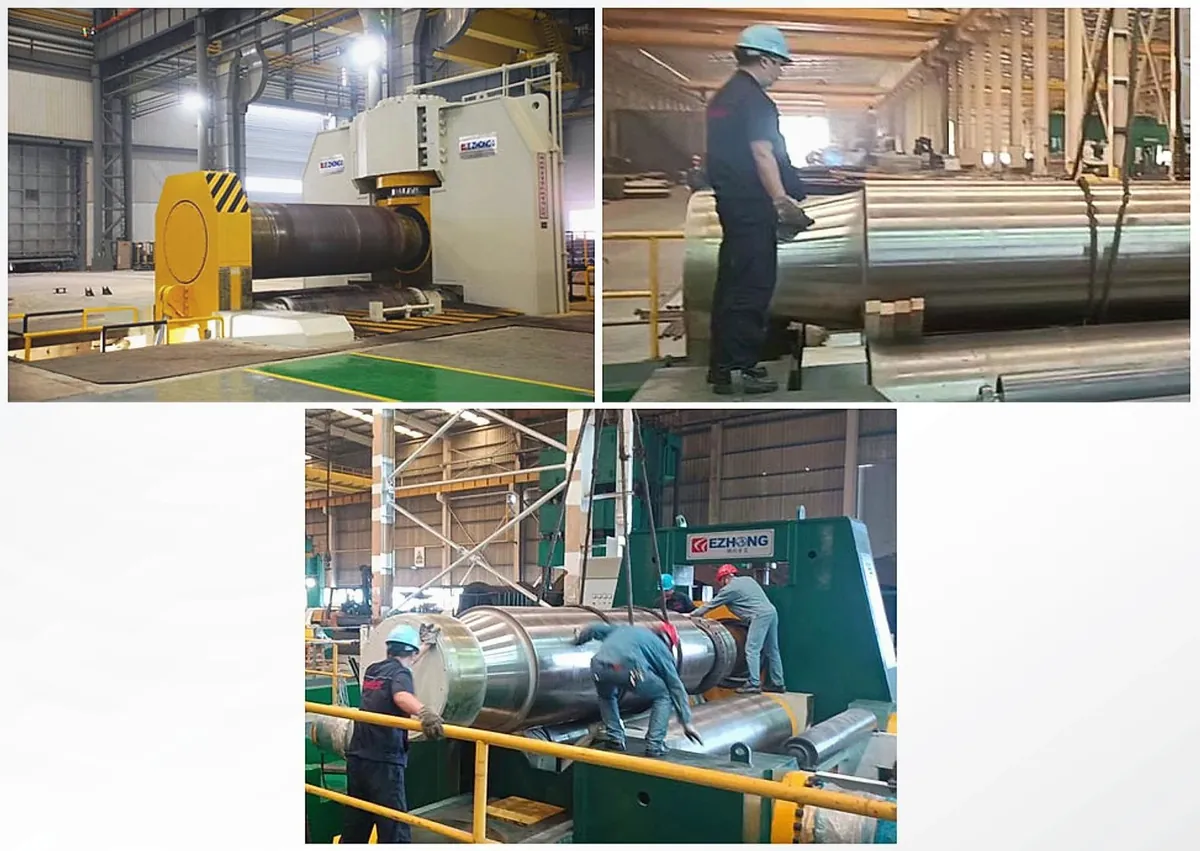

Order EZHONG products:
EZW11SXY-20*12000 three-roll plate rolling machine
(EZW11SXY-20*12000 three-roll plate rolling machine)
Main parameter table
specification | |||
NO. | Item | Unit | Data |
1 | specifications | mm | 10X12000 |
2 | maximum thickness of bending plate | mm | 10 |
3 | The maximum width of the coil | mm | 12000 |
4 | Plate yield limit | MPa | 345 |
5 | Workpiece diameter at full load condition | mm | R445 |
6 | Roller diameter | mm | θ300 |
7 | Lower roller diameter | mm | θ240 |
8 | The center distance of the lower roller | mm | 400 |
9 | Roll row number | row | 4 |
10 | Upper working roll tilt degree | +_100 | |
11 | Plate speed | M/min | -4.2 |
12 | Lift the travel path of the upper working roller | mm | 294.5 to 88.6 above the line |
13 | The upper roller seat plunger cylinder adjusts the stroke | mm | 0--200 |
14 | Power of main motor | KW | 18.5X2 |
15 | Main cylinder rated pressure | MPa | 19 |
16 | Maximum pressure on main cylinder | MPa | 21 |
17 | Maximum pressure of the plunger cylinder | MPa | 25 |
18 | Rated pressure of the pillar plug cylinder | MPa | 12 |
19 | Maximum pressure of the strucylinder | MPa | 14 |
20 | Machine external dimensions, length, width and height | mm | 17277X1590X4310 |
