EZW11S-200/4000 Heavy Machine Manufacturing in Wind Towers
Cases

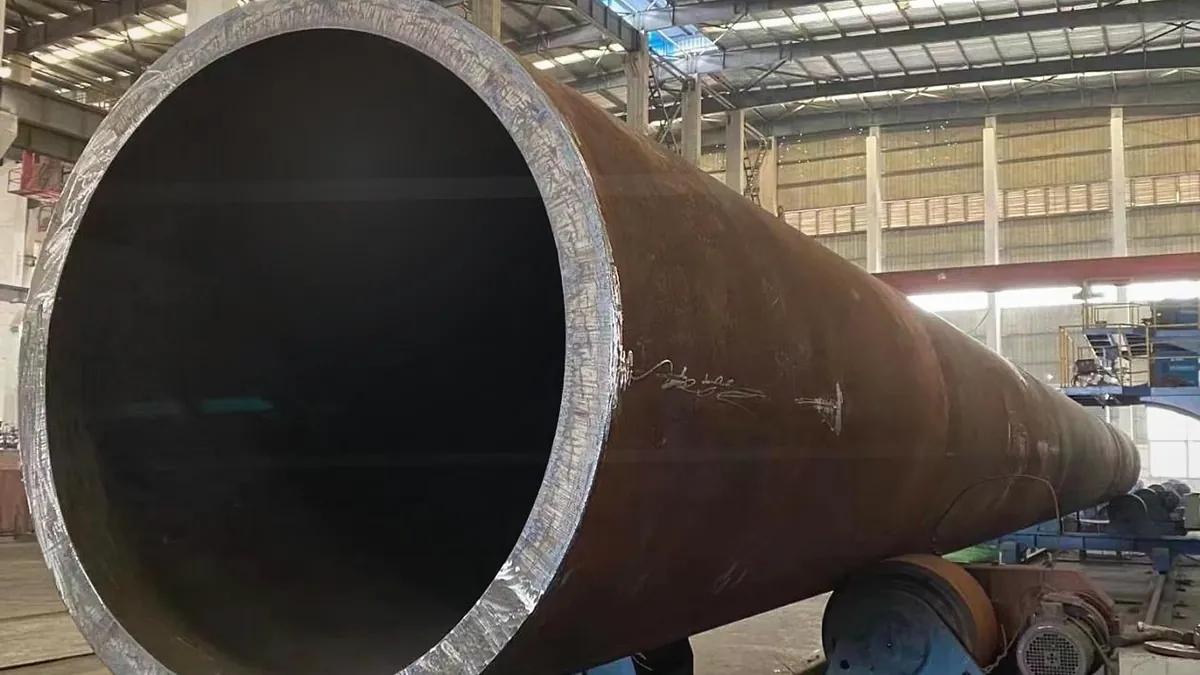

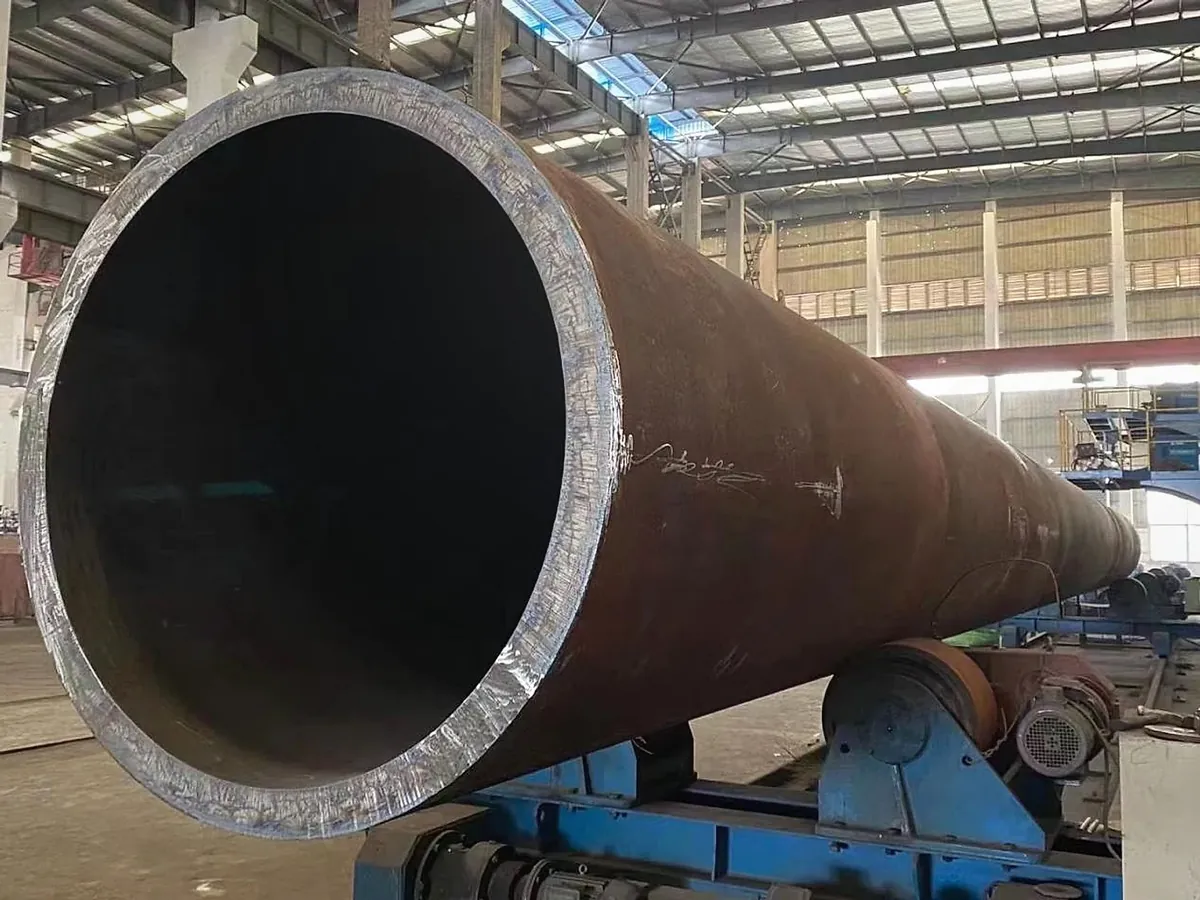

Jiangyin Ronggang Pipe Parts Manufacturing Co., Ltd. (http://jyrggg.com/) mainly produces the automatic production line, The company currently has a 10000T large press, 150mm 3500mm large coil machine, One 1500T open plastic press, One 1800T closing press, A 12-meter edge machine, Provide customers with large edge machining, large coil processing, large press processing, Large diameter thick wall pipe processing (50mm—100mm×10M×Φ2.5M double seam), Processing of straight seam submerged arc welded pipe (10mm-80mm 12M), Hammer pipe processing (10mm-60mm 12M), Square pipe processing (length 12M thickness 60mm, Specification is unlimited).
Jiangyin Ronggang Pipe fittings Manufacturing Co., LTD
Jiangyin Ronggang Pipe Parts Manufacturing Co., Ltd. (http://jyrggg.com/) mainly produces the automatic production line, The company currently has a 10000T large press, 150mm 3500mm large coil machine, One 1500T open plastic press, One 1800T closing press, A 12-meter edge machine, Provide customers with large edge machining, large coil processing, large press processing, Large diameter thick wall pipe processing (50mm—100mm×10M×Φ2.5M double seam), Processing of straight seam submerged arc welded pipe (10mm-80mm 12M), Hammer pipe processing (10mm-60mm 12M), Square pipe processing (length 12M thickness 60mm, Specification is unlimited).
Ordering EZHONG products:

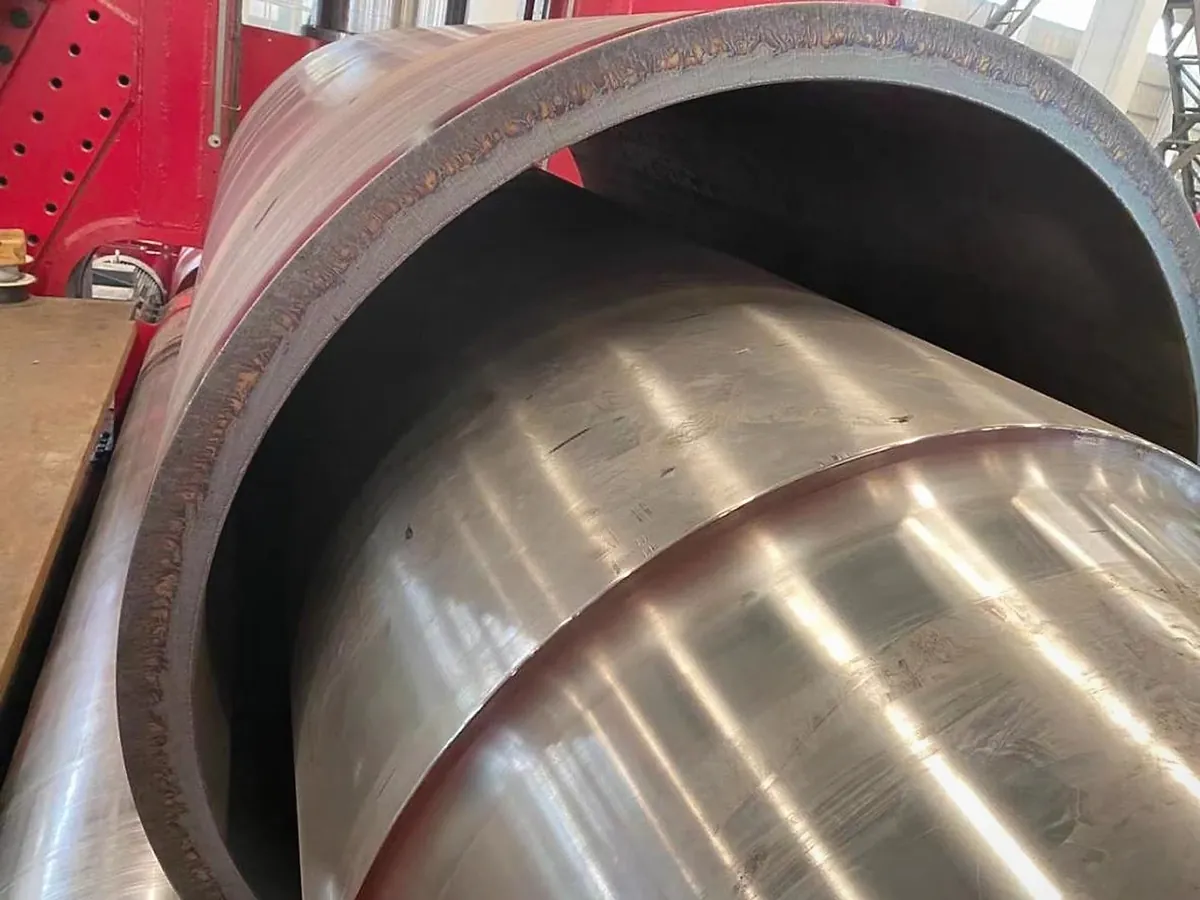

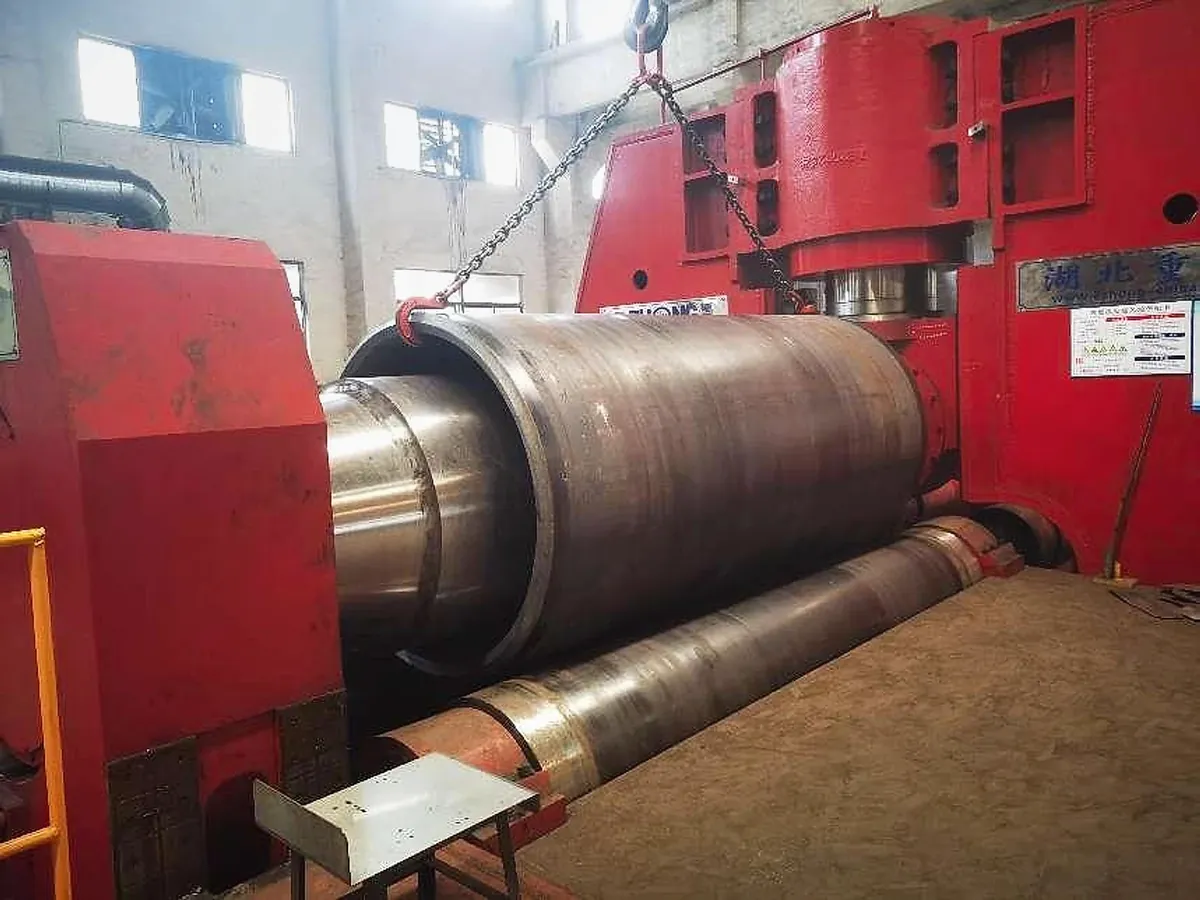

EZW11S-200 * 4000 heavy machine manufacturing & Conduit frame manufacturing
Parameter Table of Heavy Machine Manufacturing Equipment
ITEM | DATA | |||
Plate yield strength | 245 | 355 | 355 | 690 |
The maximum thickness of the coil | 200 | 90 | 120 | 90 |
Maximum calibration circle thickness (mm) | 90 | 120 | 90 | |
Maximum width of coil plate (mm) | 3000 | 4000 | 3000 | 3000 |
Minimum coil plate diameter (mm) | Φ4000 | Φ1600 | Φ2800 | Φ4200 |
Upper roller diameter (mm) | Φ1200 | |||
Lower roller diameter (mm) | Φ700 | |||
Number of roller rolls (row) | 1 | |||
Center distance of lower roller (mm) | 1450 | |||
Bending coil speed (m / min) | 3.341 | |||
Up and down the roll | 390 336.1 | |||
Main motor power (kw) | 132×2 | |||
Maximum downforce of upper roller | 4300t | |||
Operating pressure of the main cylinder (Mpa) | 25 | |||
Inhead head over Angle | 90 | |||
Outline dimension | 13040×5960×7400 | |||
