W11S-125/200×3800 Plate Bending Machine in Boiler Works
Cases
Wuhan boiler factory is the boiler industry leading enterprises, Wuhan boiler factory has many years of experience in boiler design and manufacturing, the main products of coal-fired boiler, fuel boiler, gas boiler, multi-function atmospheric pressure hot water boiler, organic heat carrier (conductive oil) boiler, boiler, steam boiler, electric boiler, vacuum boiler, hot water boiler, circulating fluidized bed boiler, household boiler, environmental protection boiler, aluminum boiler, electric water boiler, etc. The company has first-class inspection and testing equipment, testing means are complete, advanced. There are 136 sets of important testing equipment, including 4 megv linear accelerator, 420 kVA X-ray flaw detector, γ -ray flaw detector, direct reading spectrometer, large rate gold phase microscope, etc.

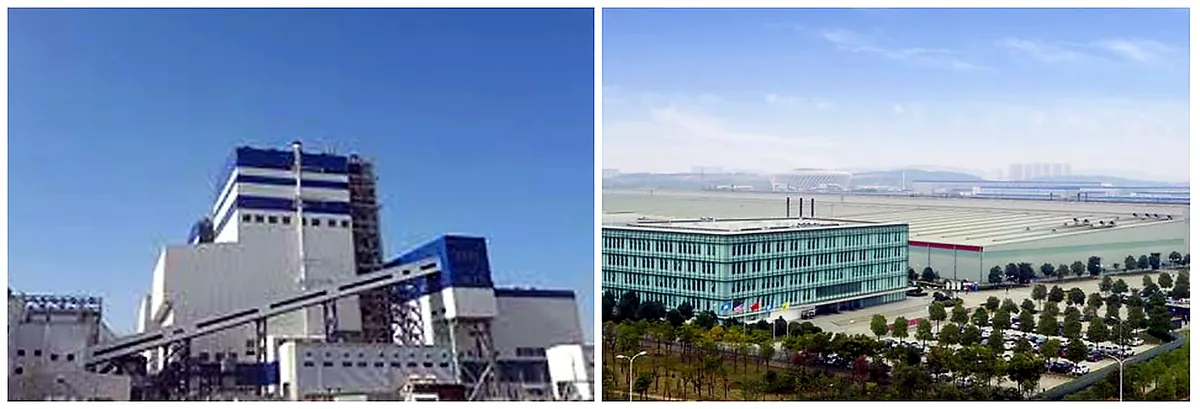

Wuhan boiler factory
http://cc.fxwjy.com
Introduction: Wuhan boiler factory is the boiler industry leading enterprises, Wuhan boiler factory has many years of experience in boiler design and manufacturing, the main products of coal-fired boiler, fuel boiler, gas boiler, multi-function atmospheric pressure hot water boiler, organic heat carrier (conductive oil) boiler, boiler, steam boiler, electric boiler, vacuum boiler, hot water boiler, circulating fluidized bed boiler, household boiler, environmental protection boiler, aluminum boiler, electric water boiler, etc. The company has first-class inspection and testing equipment, testing means are complete, advanced. There are 136 sets of important testing equipment, including 4 megv linear accelerator, 420 kVA X-ray flaw detector, γ -ray flaw detector, direct reading spectrometer, large rate gold phase microscope, etc. Can fully meet all kinds of inspection, testing requirements, to ensure the product quality. Leading products: coal-fired boiler, oil-fired boiler, gas-fired boiler, multi-functional atmospheric pressure hot water boiler, organic heat carrier boiler (thermal oil boiler), steam boiler, electric boiler, vacuum boiler, hot water boiler, circulating fluidized bed boiler, household boiler, environmental protection boiler, aluminum boiler, electric water boiler, etc.
Order EZHONG products:

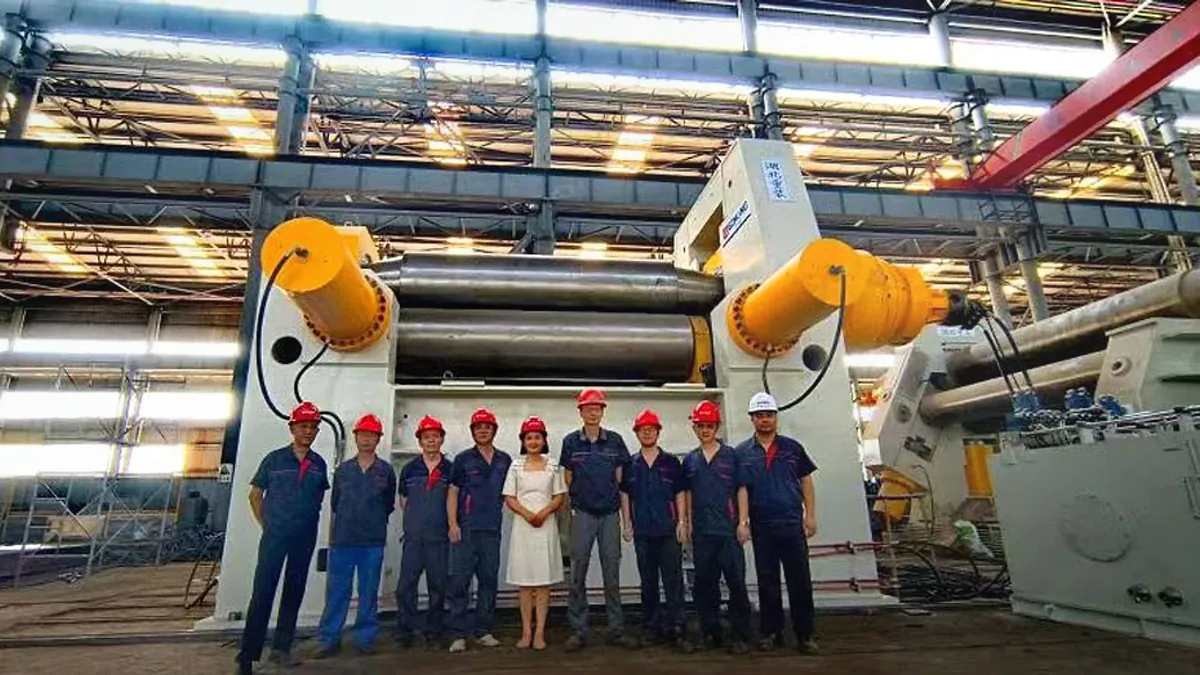

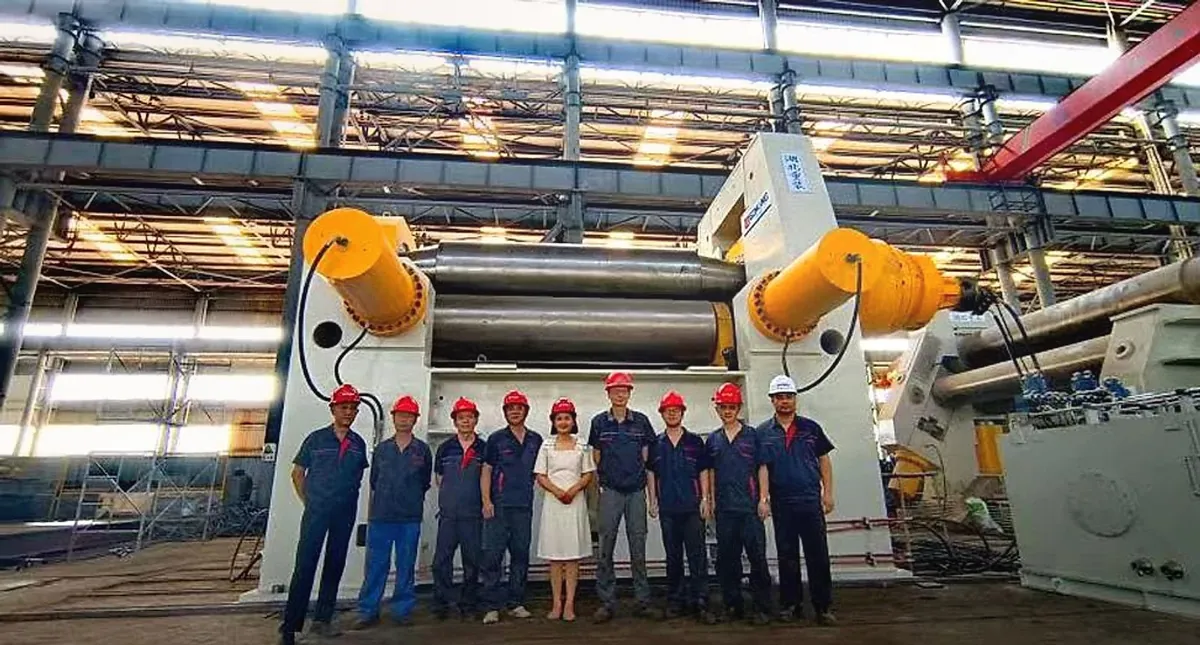

W11S-125/200×3800
（W11S-125/200×3800）
Main parameter table
Serial number | Name | Unit | Data |
1 | Machine specification | Mm | W11S-125/200 × 3800 |
2 | Maximum thickness of coiled plate | Mm | Cold 125 / hot 200 |
3 | Maximum width of coiled plate | Mm | 3800 |
4 | Yield limit of steel plate | MPa | 245 |
5 | Minimum drum diameter under full load | Mm | φ 3500 |
6 | Maximum thickness of pre-bending | Mm | 110 |
7 | Pre-bend the remaining straight edge | Mm | 2mm 2.5 times plate thickness |
8 | Upper roll diameter | Mm | 1050 |
9 | Center distance of lower roll | Mm | 1150 |
10 | Lower roll diameter | Mm | 515 |
11 | Number of supporting rolls | Column | 2 |
12 | Bending speed | M/min | ~ 3.5 |
13 | Upper roll lift stroke | Mm | Through online 283 / offline 252 |
15 | Main motor power | KW | 63 × 2 |
17 | Rated pressure of master cylinder | MPa | 25 |
18 | Overturning angle of overturning frame work | Degree | 90 °±1 °(reference) |
19 | Maximum angle of overturning frame | Degree | 93 ° |
20 | Machine form factor | Mm | ~ 9960 × 4740 × 5895 |
